HRP-600-15

Mean Well power supply series HRP-600 and HRPG-600

Switching power supplies in an enclosed housing with 600W, a DC fan, a built-in remote sense function, a DC OK signal, and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-600-3.3, HRP-600-5, HRP-600-7.5, HRP-600-12, HRP-600-15, HRP-600-24, HRP-600-36 and HRP-600-48.

Furthermore, our product range includes the following power supplies with a low no-load power (<0,75W), a built-in auxiliary power (standby 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-600-3.3, HRPG-600-5, HRPG-600-7.5, HRPG-600-12, HRPG-600-15, HRPG-600-24, HRPG-600-36 and HRPG-600-48.

  • single output
  • output: 396 to 648W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1,2mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight HRP-600_: 1500g
  • weight HRPG-600_: 1580g

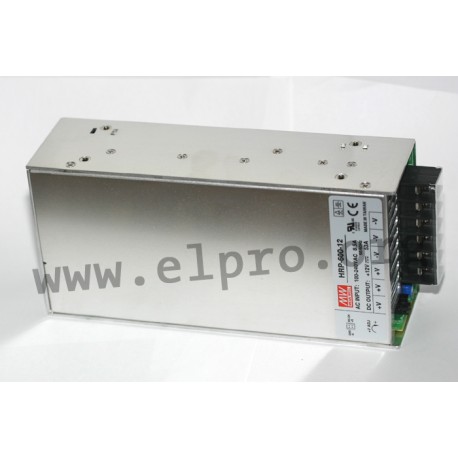

Meanwell HRP-600 series

HRP-600-15

35192 HRP-600-15 HRP-600-15 4711287436975 Mean Well power supply series HRP-600 and HRPG-600. Switching power supplies in an enclosed housing with 600W, a DC fan, a built-in remote sense function, a DC OK signal, and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-600-3.3, HRP-600-5, HRP-600-7.5, HRP-600-12, HRP-600-15, HRP-600-24, HRP-600-36 and HRP-600-48. Furthermore, our product range includes the following power supplies with a low no-load power (&lt;0,75W), a built-in auxiliary power (standby 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-600-3.3, HRPG-600-5, HRPG-600-7.5, HRPG-600-12, HRPG-600-15, HRPG-600-24, HRPG-600-36 and HRPG-600-48. single output output: 396 to 648W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1,2mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight HRP-600_: 1500g weight HRPG-600_: 1580g

Specifications

manufacturer
Manufacturer's name HRP-600-15
GTIN 4711287436975
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...43
Output voltage tolerance: [%] 1
Output power [W] 645
Ripple [mVp-p] 150
Output voltage adjustment [V] 13,5...18
Data Sheet

Unit price

114,39 €

Volume discounts

Quantity Unit price
50 + 110,59 €

Stock: 25
Further delivery:
CW 12/2025
