HRP-450-5

Mean Well power supply series HRP-450 and HRPG-450

Switching power supplies in an enclosed housing with 450W, a universal input, screw terminals and a built-in DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-450-3.3, HRP-450-5, HRP-450-7.5, HRP-450-12, HRP-450-15, HRP-450-24, HRP-450-36 and HRP-450-48.

Furthermore, our product range includes the following power supplies with a low no-load power, a built-in auxiliary power (standby, 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-450-3.3, HRPG-450-5, HRPG-450-7.5, HRPG-450-12, HRPG-450-15, HRPG-450-24, HRPG-450-36 and HRPG-450-48.

  • single output
  • output: 297 to 456W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1,5mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 1190g

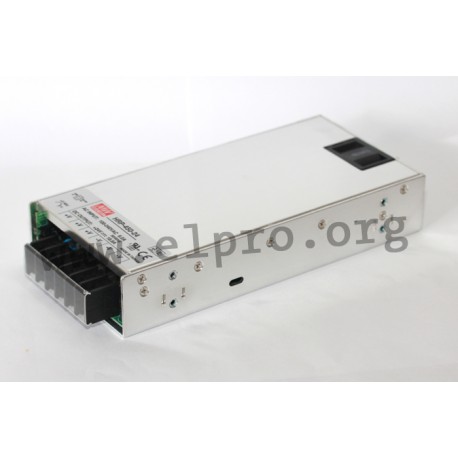

Meanwell HRP-450 serie

HRP-450-5

35806 HRP-450-5 HRP-450-5 4711287436791 Mean Well power supply series HRP-450 and HRPG-450. Switching power supplies in an enclosed housing with 450W, a universal input, screw terminals and a built-in DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-450-3.3, HRP-450-5, HRP-450-7.5, HRP-450-12, HRP-450-15, HRP-450-24, HRP-450-36 and HRP-450-48. Furthermore, our product range includes the following power supplies with a low no-load power, a built-in auxiliary power (standby, 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-450-3.3, HRPG-450-5, HRPG-450-7.5, HRPG-450-12, HRPG-450-15, HRPG-450-24, HRPG-450-36 and HRPG-450-48. single output output: 297 to 456W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1,5mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 1190g

Specifications

manufacturer
Manufacturer's name HRP-450-5
GTIN 4711287436791
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 83
Output current range [A] 0...90
Output voltage tolerance: [%] 2
Output power [W] 450
Ripple [mVp-p] 80
Output voltage adjustment [V] 4,3...5,8
Data Sheet

Unit price

109,69 €

Volume discounts

Quantity Unit price
50 + 105,99 €

Stock: 37
Further delivery:
CW 18/2025
