HRP-300N3-12

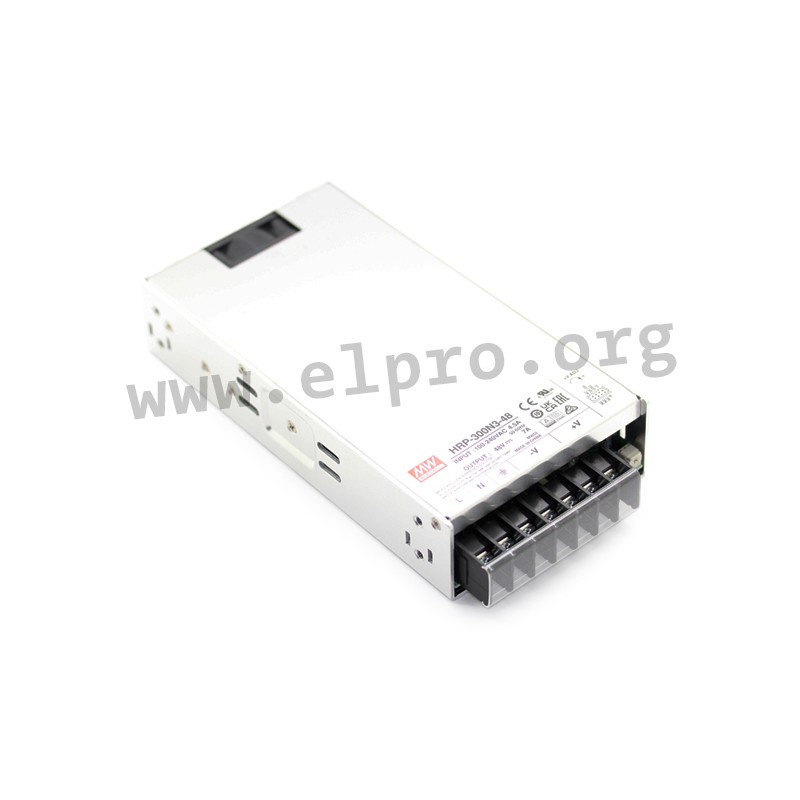

Mean Well power supply series HRP-300N3

Switching power supplies in an enclosed housing with 300W, a universal input, a high efficiency (of up to 89%) and screw terminals. These devices have a built-in active PFC function and are protected against overload, overvoltage, overtemperature as well as short circuit. They are suitable for a peak power of 300% for a maximum of 5 seconds and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-300N3-12, HRP-300N3-24, HRP-300N3-36 and HRP-300N3-48.

  • single output
  • output: 324 to 336W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 199x105x41mm
  • weight: 900g

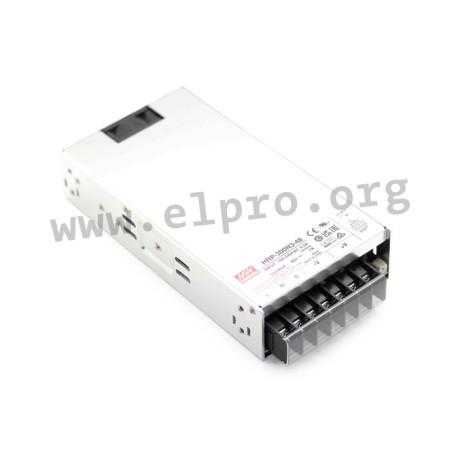

HRP-300N3-12, Mean Well switching power supplies, 300W, 300% peak power, HRP-300N3 series

HRP-300N3-12

241199 HRP-300N3-12 HRP-300N3-12 4711287484167 Mean Well power supply series HRP-300N3. Switching power supplies in an enclosed housing with 300W, a universal input, a high efficiency (of up to 89%) and screw terminals. These devices have a built-in active PFC function and are protected against overload, overvoltage, overtemperature as well as short circuit. They are suitable for a peak power of 300% for a maximum of 5 seconds and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-300N3-12, HRP-300N3-24, HRP-300N3-36 and HRP-300N3-48. single output output: 324 to 336W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C dimensions: 199x105x41mm weight: 900g

Specifications

manufacturer
Manufacturer's name HRP-300N3-12
GTIN 4711287484167
Output voltage [V] 12
Efficiency [%] 88
Output current range [A] 0...27
Output voltage tolerance: [%] ±1
Output power [W] 324
Data Sheet

Unit price

71,99 €

Volume discounts

Quantity Unit price
50 + 69,59 €

Stock: 17
Further delivery:
CW 18/2025
