HRP-300-15

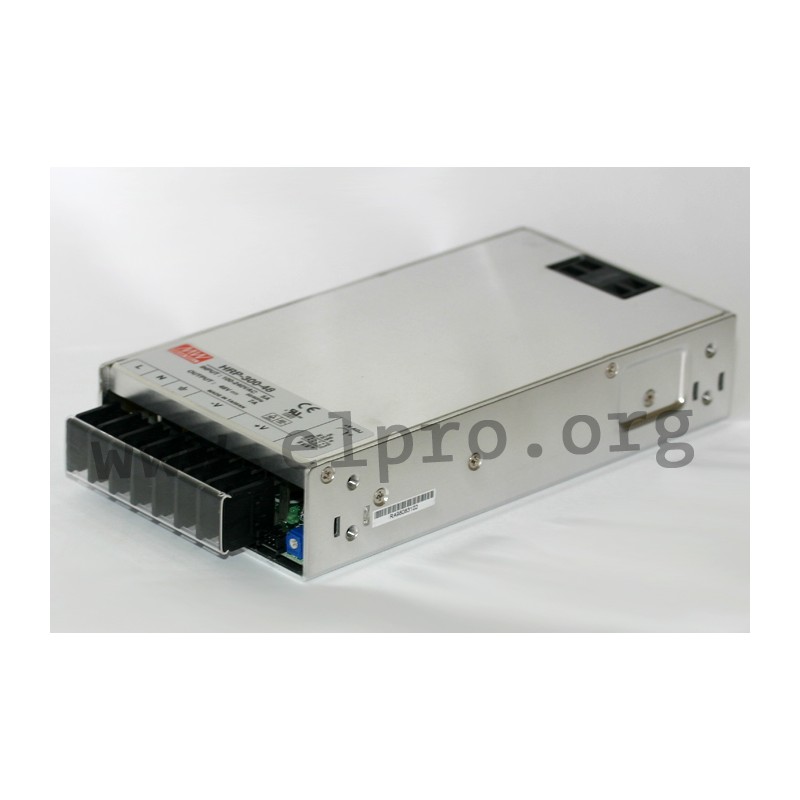

Mean Well power supply series HRP-300 and HRPG-300

Switching power supplies in an enclosed housing with 300W, a universal input, screw terminals, a DC OK signal and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types HRP-300-3.3, HRP-300-5, HRP-300-7.5, HRP-300-12, HRP-300-15, HRP-300-24, HRP-300-36 and HRP-300-48 of this Mean Well series as well as the power supplies HRPG-300-3.3, HRPG-300-5, HRPG-300-7.5, HRPG-300-12, HRPG-300-15, HRPG-300-24, HRPG-300-36 and HRPG-300-48 with a low no-load power (<0,5W), a built-in auxiliary power (standy 5V/0,3A) and a built-in remote ON/OFF control.

  • single output
  • output: 198 to 336W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1,2mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 950g

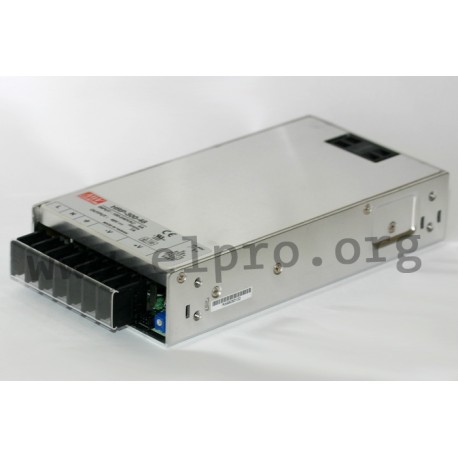

Mean Well HRP-300 series

HRP-300-15

35175 HRP-300-15 HRP-300-15 4711287436654 Mean Well power supply series HRP-300 and HRPG-300. Switching power supplies in an enclosed housing with 300W, a universal input, screw terminals, a DC OK signal and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types HRP-300-3.3, HRP-300-5, HRP-300-7.5, HRP-300-12, HRP-300-15, HRP-300-24, HRP-300-36 and HRP-300-48 of this Mean Well series as well as the power supplies HRPG-300-3.3, HRPG-300-5, HRPG-300-7.5, HRPG-300-12, HRPG-300-15, HRPG-300-24, HRPG-300-36 and HRPG-300-48 with a low no-load power (&lt;0,5W), a built-in auxiliary power (standy 5V/0,3A) and a built-in remote ON/OFF control. single output output: 198 to 336W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1,2mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 950g

Specifications

manufacturer
Manufacturer's name HRP-300-15
GTIN 4711287436654
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...22
Output voltage tolerance: [%] 1
Output power [W] 330
Output voltage adjustment [V] 13,5...18
Ripple [mVp-p] 150
Data Sheet

Unit price

68,59 €

Volume discounts

Quantity Unit price
50 + 66,29 €

Stock: 45
Further delivery:
CW 22/2025
