HRP-200-12

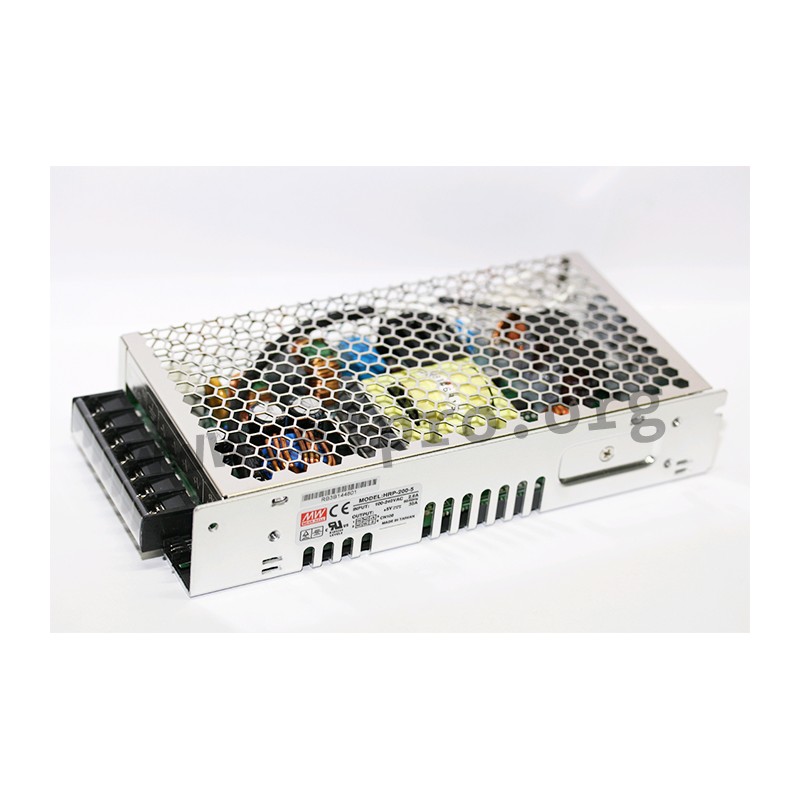

Mean Well power supply series HRP-200 and HRPG-200

Switching power supplies in an enclosed housing with 200W, a universal input, a low profile and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types HRP-200-3.3, HRP-200-5, HRP-200-7.5, HRP-200-12, HRP-200-15, HRP-200-24, HRP-200-36 and HRP-200-48 of this Mean Well series as well as the following power supplies with a low no-load power, a built-in remote ON/OFF control and a built-in auxiliary power (standby 5V/0,3A): HRPG-200-3.3, HRPG-200-5, HRPG-200-7.5, HRPG-200-12, HRPG-200-15, HRPG-200-24, HRPG-200-36 and HRPG-200-48.

  • single output
  • output: 132 to 206,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 770g

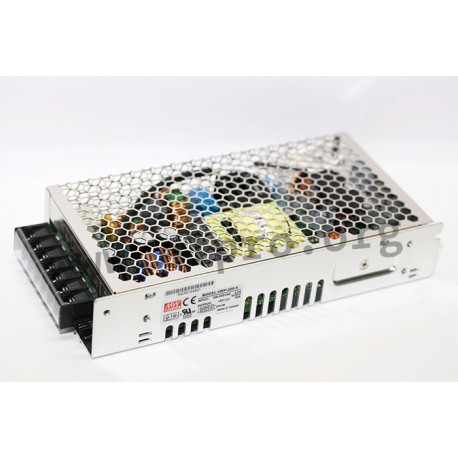

Mean Well HRP-200 series

HRP-200-12

35787 HRP-200-12 HRP-200-12 4711287436487 Mean Well power supply series HRP-200 and HRPG-200. Switching power supplies in an enclosed housing with 200W, a universal input, a low profile and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types HRP-200-3.3, HRP-200-5, HRP-200-7.5, HRP-200-12, HRP-200-15, HRP-200-24, HRP-200-36 and HRP-200-48 of this Mean Well series as well as the following power supplies with a low no-load power, a built-in remote ON/OFF control and a built-in auxiliary power (standby 5V/0,3A): HRPG-200-3.3, HRPG-200-5, HRPG-200-7.5, HRPG-200-12, HRPG-200-15, HRPG-200-24, HRPG-200-36 and HRPG-200-48. single output output: 132 to 206,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 770g

Specifications

manufacturer
Manufacturer's name HRP-200-12
GTIN 4711287436487
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...16,7
Output voltage tolerance: [%] 1
Output power [W] 200,4
Ripple [mVp-p] 120
Output voltage adjustment [V] 10,2...13,8
Data Sheet

Unit price

58,19 €

Volume discounts

Quantity Unit price
50 + 56,19 €

Stock: 59
Further delivery:
CW 18/2025
