HRP-150N3-48

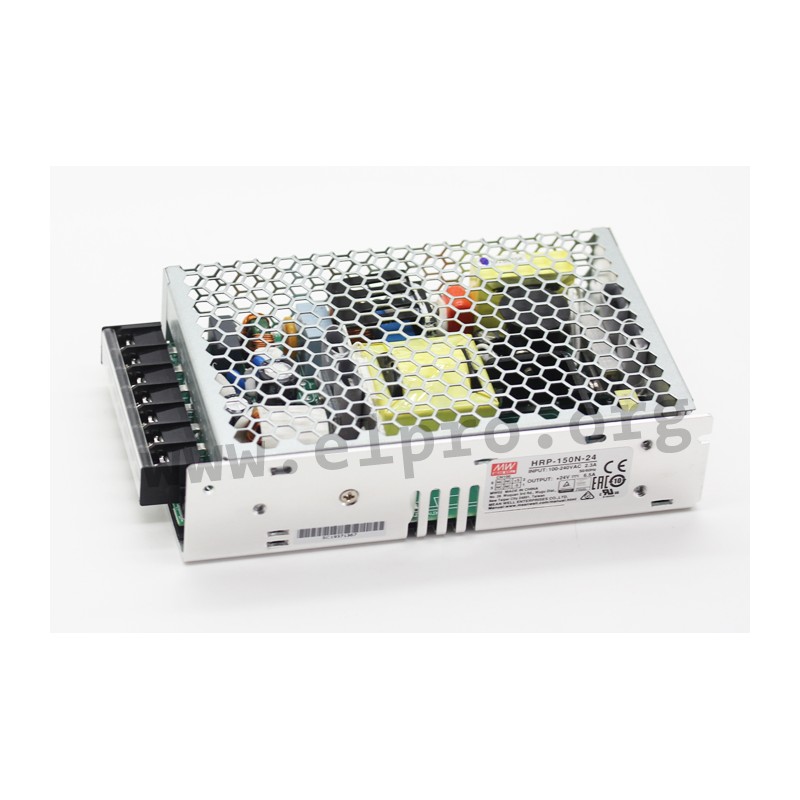

Mean Well power supply series HRP-150N3

Switching power supplies in an enclosed housing with 150W, a universal input, a peak load capability of 300% (5s), screw terminals and a high efficiency. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-150N3-12, HRP-150N3-24, HRP-150N3-36 and HRP-150N3-48.

  • single output
  • output: 154,8 to 158,4W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 157x97x38mm
  • weight: 540g
HRP-150N3-48, Mean Well switching power supplies, 150W, 300% peak power, HRP-150N3 series

HRP-150N3-48

241198 HRP-150N3-48 HRP-150N3-48 4711287484150 Mean Well power supply series HRP-150N3. Switching power supplies in an enclosed housing with 150W, a universal input, a peak load capability of 300% (5s), screw terminals and a high efficiency. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-150N3-12, HRP-150N3-24, HRP-150N3-36 and HRP-150N3-48. single output output: 154,8 to 158,4W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C dimensions: 157x97x38mm weight: 540g

Specifications

manufacturer
Manufacturer's name HRP-150N3-48
GTIN 4711287484150
Output voltage [V] 48
Efficiency [%] 89
Output current range [A] 0...3,3
Output voltage tolerance: [%] ±1,5
Output power [W] 158,4
Ripple [mVp-p] 240
Data Sheet

Unit price

49,39 €

Volume discounts

Quantity Unit price
50 + 48,39 €

Stock: 8
Further delivery:
CW 18/2025
