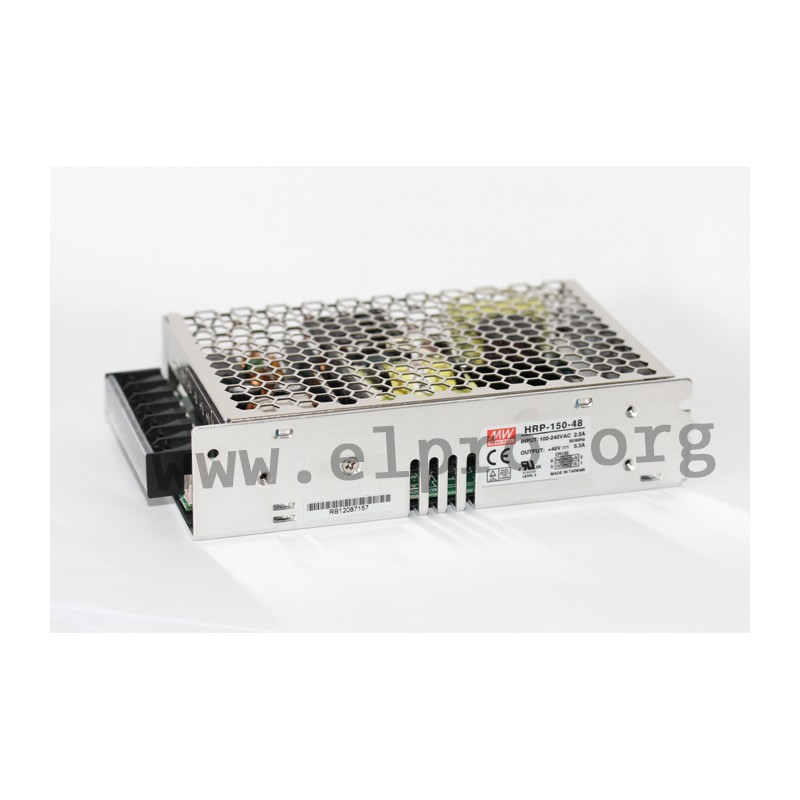

HRP-150-36

Mean Well power supply series HRP-150 and HRPG-150

Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-150-3.3, HRP-150-5, HRP-150-7.5, HRP-150-12, HRP-150-15, HRP-150-24, HRP-150-36 and HRP-150-48.

Furthermore, we offer the types HRPG-150-3.3, HRPG-150-5, HRPG-150-7.5, HRPG-150-12, HRPG-150-15, HRPG-150-24, HRPG-150-36 and HRPG-150-48 with a built-in auxiliary power as well as a low no-load power (<0,5W). Additionally, they have a built-in remote ON/OFF control.

  • single output
  • output: 99 to 158W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight HRP-150_: 610g
  • weight HRPG-150_: 630g

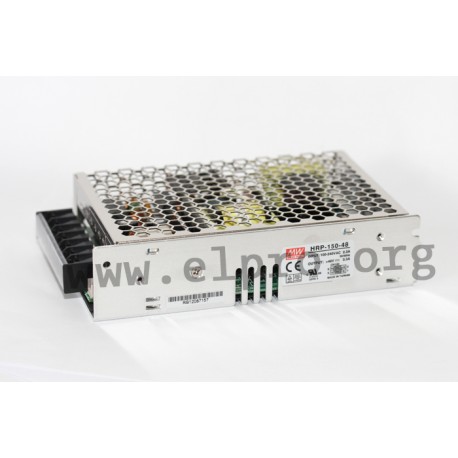

Mean Well HRP-150 series

HRP-150-36

35163 HRP-150-36 HRP-150-36 4711287436364 Mean Well power supply series HRP-150 and HRPG-150. Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote sense function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-150-3.3, HRP-150-5, HRP-150-7.5, HRP-150-12, HRP-150-15, HRP-150-24, HRP-150-36 and HRP-150-48. Furthermore, we offer the types HRPG-150-3.3, HRPG-150-5, HRPG-150-7.5, HRPG-150-12, HRPG-150-15, HRPG-150-24, HRPG-150-36 and HRPG-150-48 with a built-in auxiliary power as well as a low no-load power (&lt;0,5W). Additionally, they have a built-in remote ON/OFF control. single output output: 99 to 158W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight HRP-150_: 610g weight HRPG-150_: 630g

Specifications

manufacturer
Manufacturer's name HRP-150-36
GTIN 4711287436364
Output voltage [V] 36
Phase 2 phase
Efficiency [%] 89
Output current range [A] 0...4,3
Output voltage tolerance: [%] 1,5
Output power [W] 154,8
Output voltage adjustment [V] 28,8...39,6
Ripple [mVp-p] 200
Data Sheet

Unit price

47,09 €

Volume discounts

Quantity Unit price
50 + 46,09 €

Stock: 18
Further delivery:
CW 18/2025
