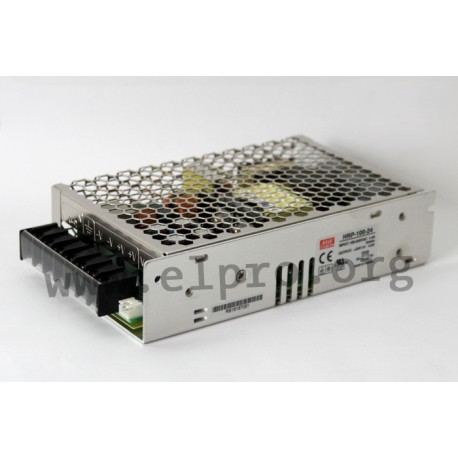

HRP-100-3.3

Mean Well power supply series HRP-100

Switching power supplies in an enclosed housing with 100W, a universal input, screw terminals, a low profile and a low no-load power. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-100-3.3, HRP-100-5, HRP-100-7.5, HRP-100-12, HRP-100-15, HRP-100-24, HRP-100-36 and HRP-100-48.

  • single output
  • output: 66 to 108W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 65A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +60°C
  • weight: 560g
HRP-100-3.3

HRP-100-3.3

35769 HRP-100-3.3 HRP-100-3.3 4711287436272 Mean Well power supply series HRP-100. Switching power supplies in an enclosed housing with 100W, a universal input, screw&nbsp;terminals, a low profile and a low no-load power. These devices are using 105&deg;C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote ON/OFF control and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;HRP-100-3.3, HRP-100-5, HRP-100-7.5, HRP-100-12, HRP-100-15, HRP-100-24, HRP-100-36 and HRP-100-48. single output output: 66 to 108W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 65A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +60&deg;C weight: 560g

Specifications

manufacturer
Manufacturer's name HRP-100-3.3
GTIN 4711287436272
Phase 2 phase
Efficiency [%] 78
Output current range [A] 0...20
Output voltage tolerance: [%] 3,5
Output power [W] 66
Ripple [mVp-p] 80
Output voltage adjustment [V] 3,1...3,8
Data Sheet

Unit price

38,79 €

Volume discounts

Quantity Unit price
50 + 37,99 €

Stock: 2
Further delivery:
CW 18/2025
