HLP-80H-48

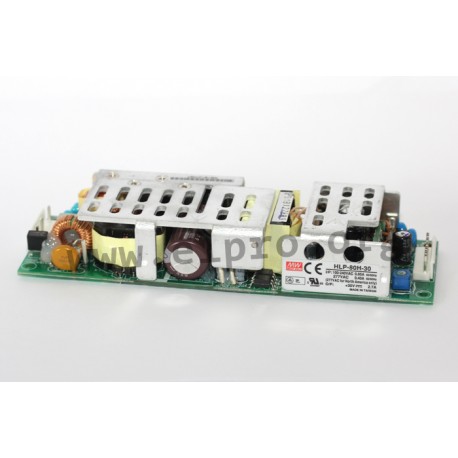

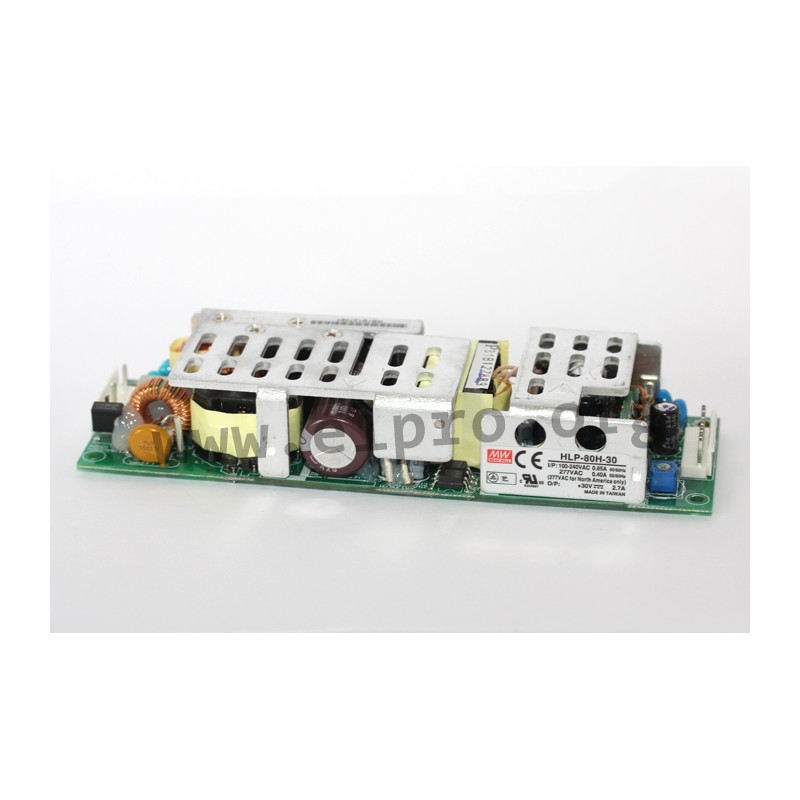

Mean Well LED driver series HLP-80H

LED drivers (PCB) with a constant current / constant voltage (mixed mode), a dimming function (external voltage 1 to 10V DC, PWM, potentiometer), 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLP-80H-12, HLP-80H-15, HLP-80H-20, HLP-80H-24, HLP-80H-30, HLP-80H-36, HLP-80H-42, HLP-80H-48 and HLP-80H-54.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C

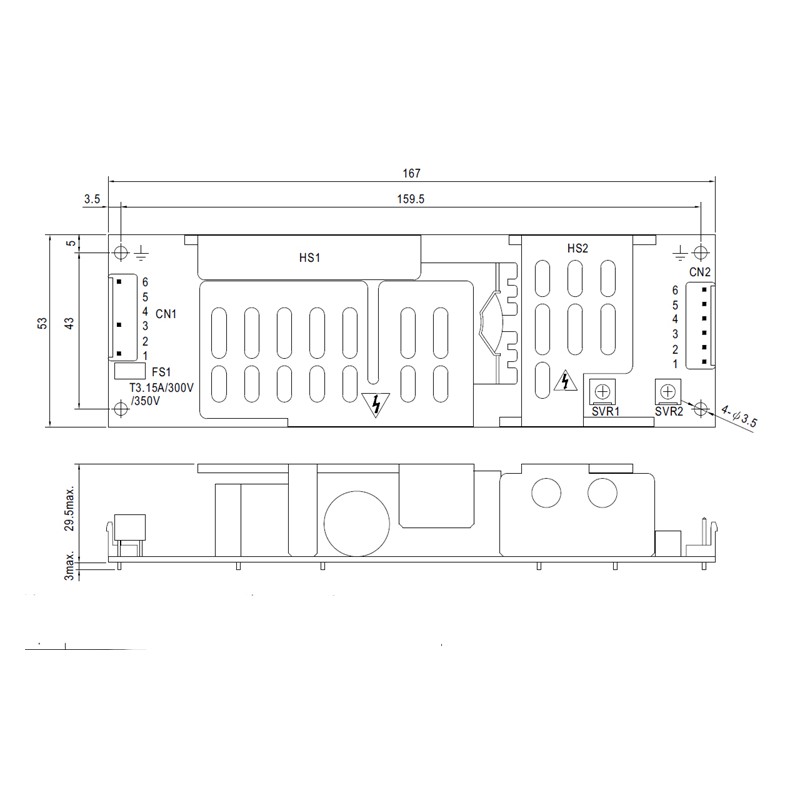

  • dimensions: 167x53x29,5mm
  • weight: 270g
HLP-80H-48

HLP-80H-48

36228 HLP-80H-48 HLP-80H-48 4711287462912 Mean Well LED driver series HLP-80H. LED drivers (PCB) with a constant current / constant voltage (mixed mode), a dimming function (external voltage 1 to 10V DC, PWM, potentiometer), 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLP-80H-12, HLP-80H-15, HLP-80H-20, HLP-80H-24, HLP-80H-30, HLP-80H-36, HLP-80H-42, HLP-80H-48 and HLP-80H-54. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C dimensions: 167x53x29,5mm weight: 270g

Specifications

manufacturer
Manufacturer's name HLP-80H-48
GTIN 4711287462912
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 1,36...1,7
Efficiency [%] 90
Output voltage tolerance: [%] 1
Output power [W] 81,6
Output voltage adjustment [V] 43...53
Ripple [mVp-p] 200
Data Sheet

Unit price

37,09 €

Volume discounts

Quantity Unit price
50 + 35,89 €

Stock: 7
Further delivery:
CW 29/2025
