HLN-80H-54A

Mean Well LED driver series HLN-80H

LED drivers in a plastic housing (IP64) with a constant current / constant voltage (mixed mode), 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLN-80H-12A, HLN-80H-15A, HLN-80H-20A, HLN-80H-24A, HLN-80H-30A, HLN-80H-36A, HLN-80H-42A, HLN-80H-48A and HLN-80H-54A.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C

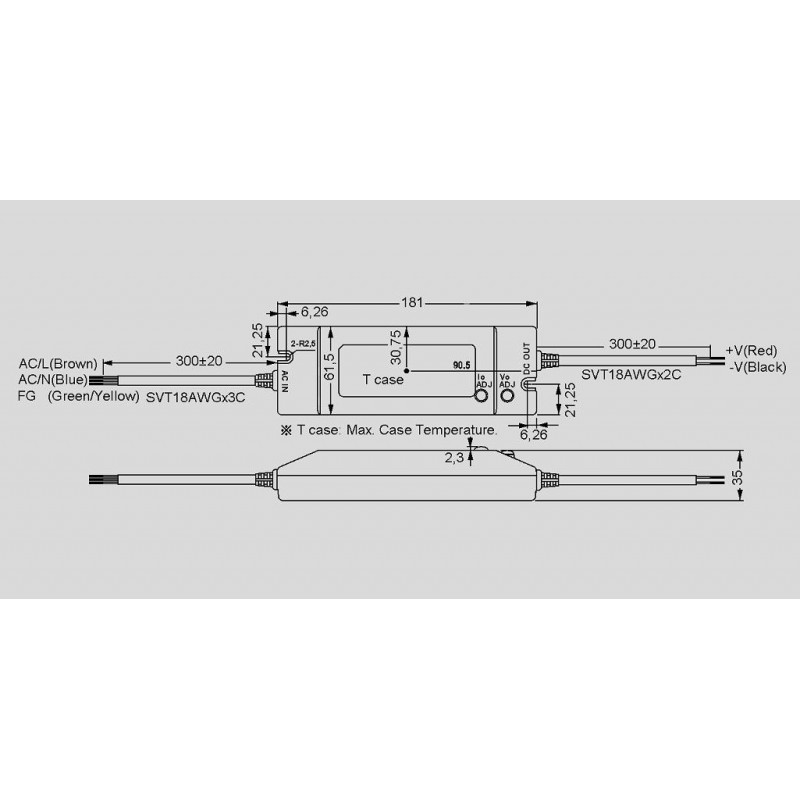

  • dimensions: 181x61,5x35mm
  • weight: 500g

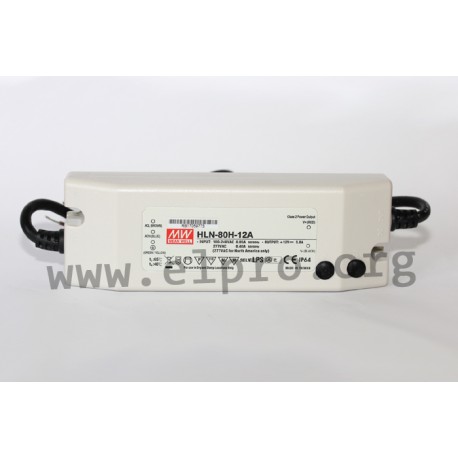

Meanwell HLN-80H series

HLN-80H-54A

36095 HLN-80H-54A HLN-80H-54A 4711287461281 Mean Well LED driver series HLN-80H. LED drivers in a plastic housing (IP64) with a constant current / constant voltage (mixed mode), 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLN-80H-12A, HLN-80H-15A, HLN-80H-20A, HLN-80H-24A, HLN-80H-30A, HLN-80H-36A, HLN-80H-42A, HLN-80H-48A and HLN-80H-54A. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +50°C dimensions: 181x61,5x35mm weight: 500g

Specifications

manufacturer
Manufacturer's name HLN-80H-54A
GTIN 4711287461281
Output voltage [V] 54
Phase 2 phase
Output current adjustment [A] 0,9...1,5
Efficiency [%] 91
Output voltage tolerance: [%] 1
Output power [W] 81
Output voltage adjustment [V] 49...58
Ripple [mV] 200
Data Sheet

Unit price

48,99 €

Stock: 0
Further delivery:
CW 24/2025
