HLN-60H-54A

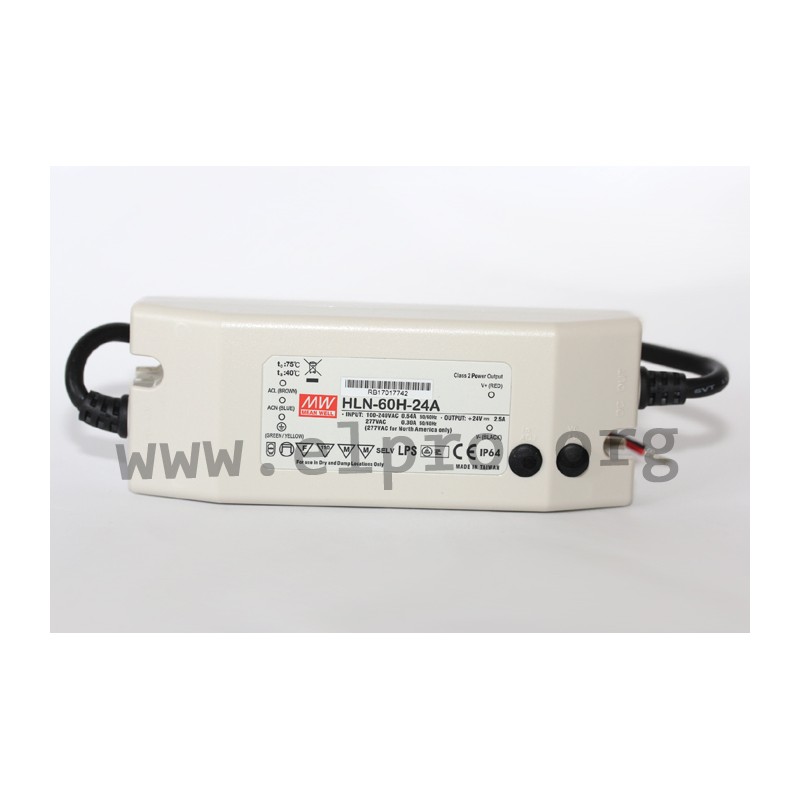

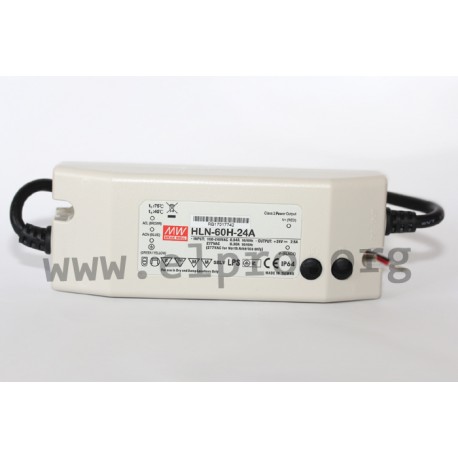

Mean Well LED driver series HLN-60

LED drivers in a plastic housing (IP64) with a constant voltage / constant current (mixed mode), a universal input and 60W. These devices comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLN-60H-15A, HLN-60H-20A, HLN-60H-24A, HLN-60H-30A, HLN-60H-36A, HLN-60H-42A, HLN-60H-48A and HLN-60H-54A.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C

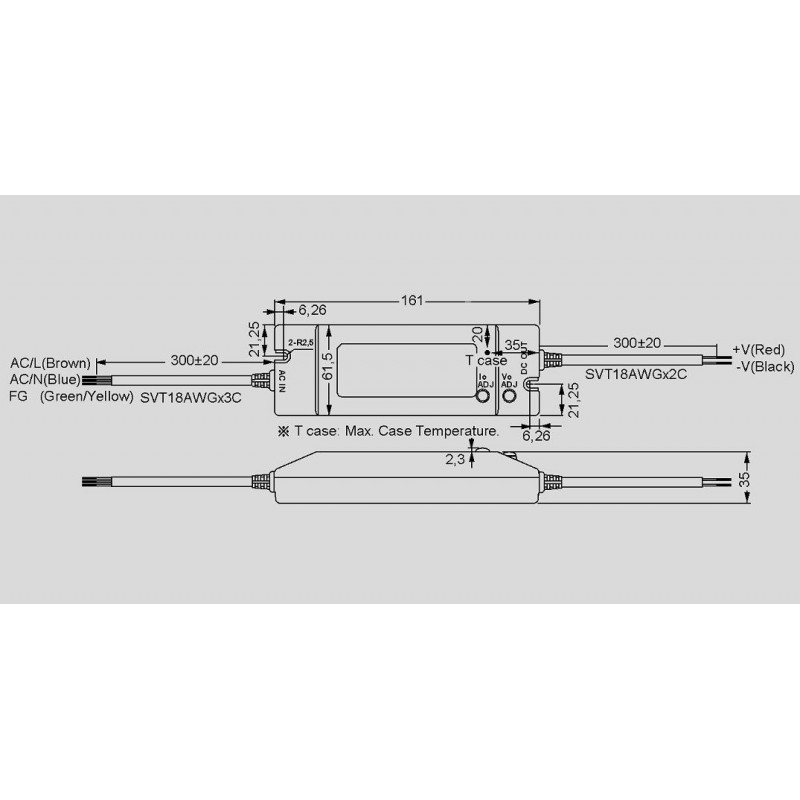

  • dimensions: 161x61,5x35mm
  • weight: 460g
Meanwell HLN-60H series

HLN-60H-54A

36090 HLN-60H-54A HLN-60H-54A 4711287461106 Mean Well LED driver series HLN-60. LED drivers in a plastic housing (IP64) with a constant voltage / constant current (mixed mode), a universal input and 60W. These devices comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLN-60H-15A, HLN-60H-20A, HLN-60H-24A, HLN-60H-30A, HLN-60H-36A, HLN-60H-42A, HLN-60H-48A and HLN-60H-54A. single output output: 60 to 62,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +50°C dimensions: 161x61,5x35mm weight: 460g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name HLN-60H-54A
GTIN 4711287461106
Output voltage [V] 54
Phase 2 phase
Output current adjustment [A] 0,69...1,15
Efficiency [%] 90,5
Output voltage tolerance: [%] 1
Output power [W] 62,1
Output voltage adjustment [V] 49...58
Ripple [mV] 300
Data Sheet

Unit price

38,69 €

Volume discounts

Quantity Unit price
50 + 37,39 €

Stock: 45
