HLN-40H-24B

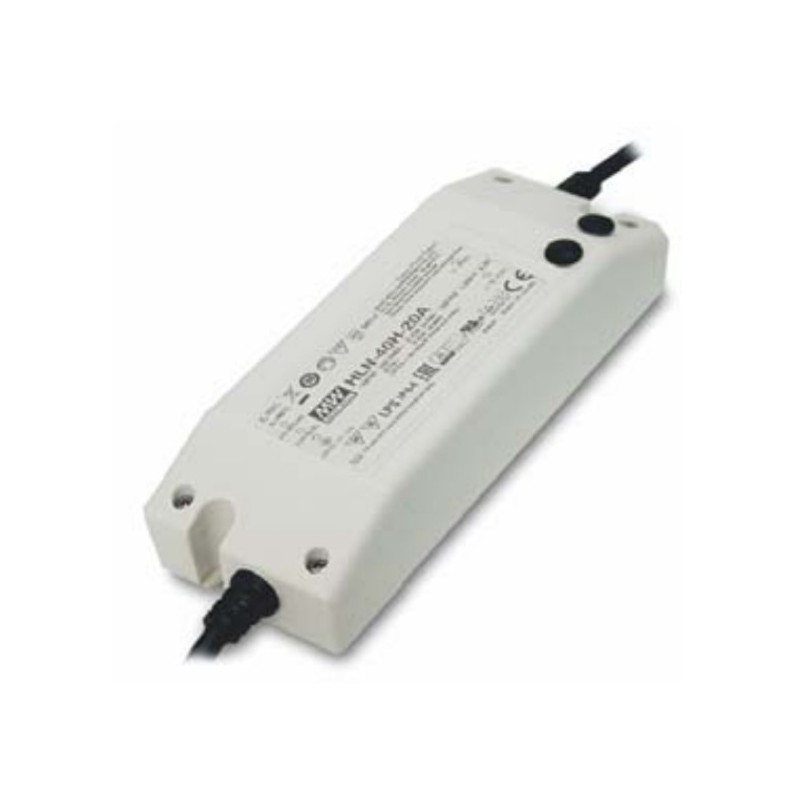

Mean Well LED driver series HLN-40H

LED drivers in a plastic housing (IP64) with a constant current, 40W and a universal input. These devices are protected against short circuit, overcurrent, overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-12, EN61000-3-2 class C as well as EN55015. They are suitable for LED lightning applications and have a built-in active PFC function. The output current is adjustable through a 3 in 1 dimming function (1 to 10V DC, PWM signal, potentiometer). We offer the type HLN-40H-24B of this Mean Well series.

  • single output
  • output: 40,1W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C
  • weight: 350g

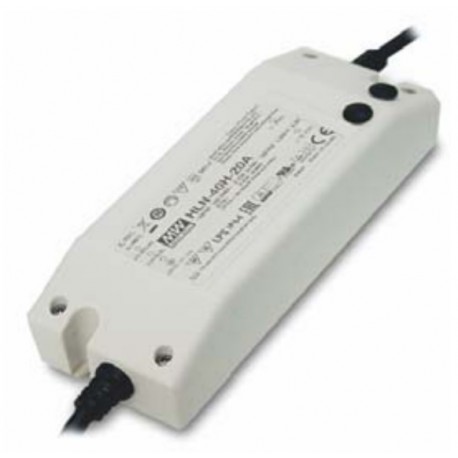

HLN-40H-24B, Mean Well LED switching power supplies, 40W, IP64, dimmable, HLN-40H series

HLN-40H-24B

123873 HLN-40H-24B HLN-40H-24B 4711287460857 Mean Well LED driver series HLN-40H. LED drivers in a plastic housing (IP64) with a constant current, 40W and a universal input. These devices are protected against short circuit, overcurrent, overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-12, EN61000-3-2 class C as well as EN55015. They are suitable for LED lightning applications and have a built-in active PFC function. The output current is adjustable through a 3 in 1 dimming function (1 to 10V DC, PWM signal, potentiometer). We offer the type HLN-40H-24B of this Mean Well series. single output output: 40,1W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +50°C weight: 350g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name HLN-40H-24B
GTIN 4711287460857
Output voltage [V] 24
Efficiency [%] 88
Output voltage tolerance: [%] 1
Output power [W] 40,1
Output voltage adjustment [V] 22...27
Ripple [mVp-p] 150
Output current adjustment [A] 1,67
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 11
