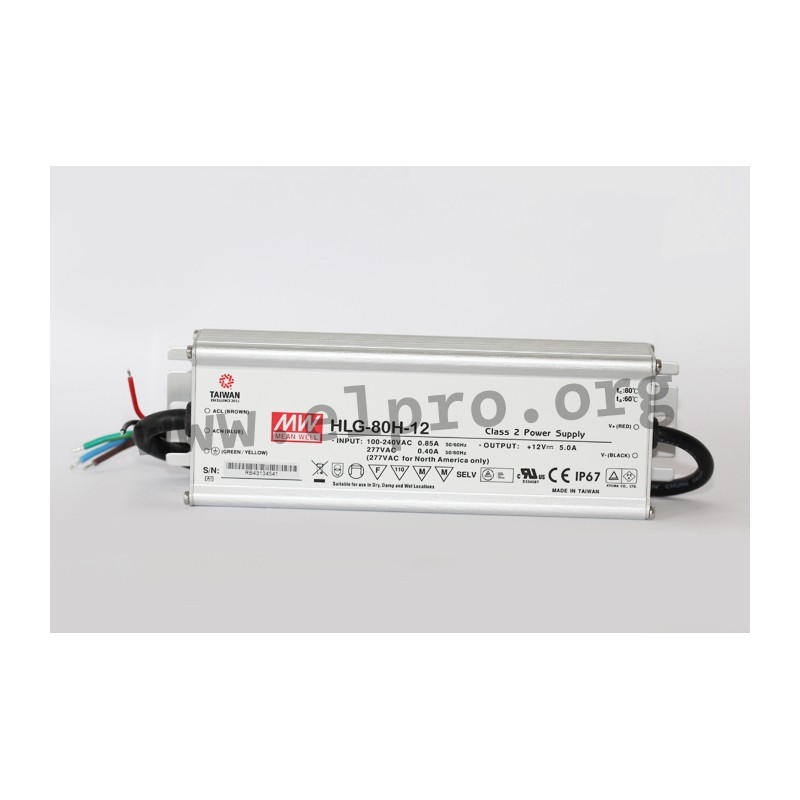

HLG-80H-12

Mean Well LED driver series HLG-80H

LED drivers in an aluminium housing (IP67) with a constant current, a constant voltage, 80W and a wide input range. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12, HLG-80H-15, HLG-80H-20, HLG-80H-24, HLG-80H-30, HLG-80H-36, HLG-80H-42, HLG-80H-48 and HLG-80H-54.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 840g

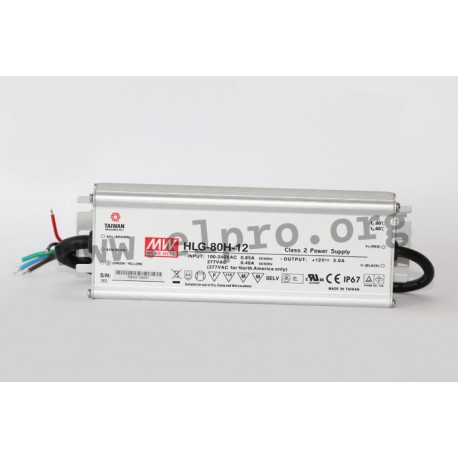

Mean Well HLG-80H series

HLG-80H-12

41248 HLG-80H-12 HLG-80H-12 4711287448800 Mean Well LED driver series HLG-80H. LED drivers in an aluminium housing (IP67) with a constant current, a constant voltage, 80W and a wide input range. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12, HLG-80H-15, HLG-80H-20, HLG-80H-24, HLG-80H-30, HLG-80H-36, HLG-80H-42, HLG-80H-48 and HLG-80H-54. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-12
GTIN 4711287448800
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output voltage tolerance: [%] 2,5
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 0
Next incoming goods:
CW 12/2025
48 units

Further delivery:
CW 16/2025
