HLG-80H-30A

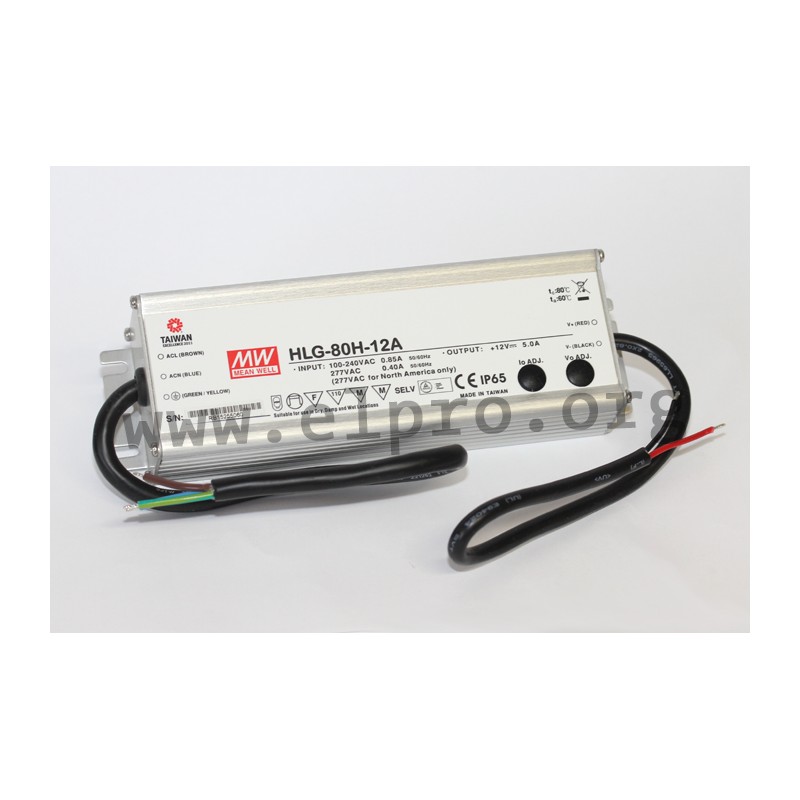

Mean Well LED driver series HLG-80H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 80W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage resp. the current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-12A, HLG-80H-15A, HLG-80H-20A, HLG-80H-24A, HLG-80H-30A, HLG-80H-36A, HLG-80H-42A, HLG-80H-48A and HLG-80H-54A.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C

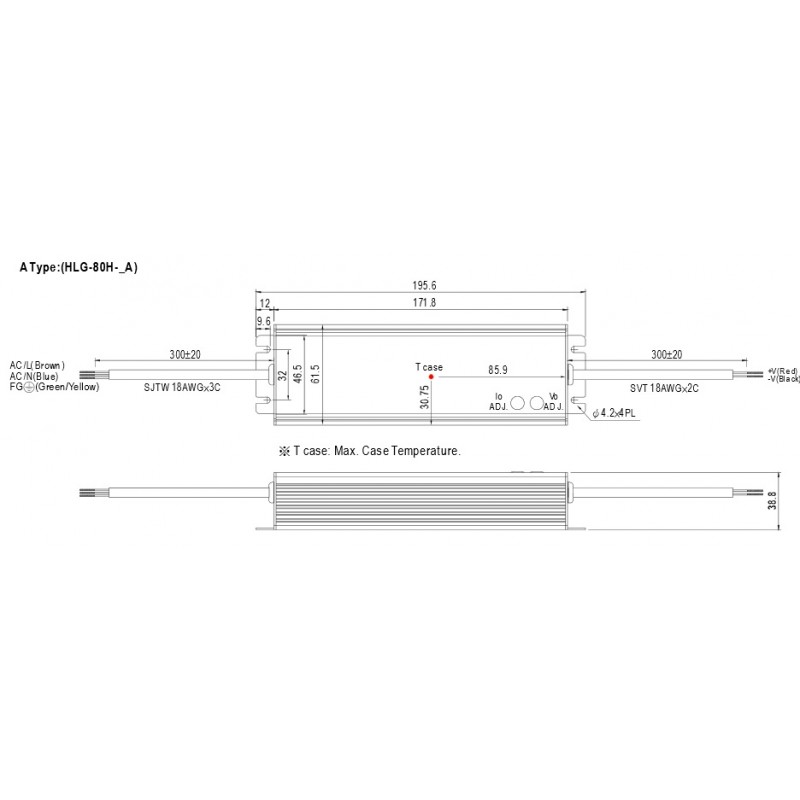

  • dimensions: 195,6x61,5x38,8mm
  • weight: 840g
Meanwell HLG-80H series

HLG-80H-30A

36010 HLG-80H-30A HLG-80H-30A 4711287448930 Mean Well LED driver series HLG-80H. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 80W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage resp. the current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-12A, HLG-80H-15A, HLG-80H-20A, HLG-80H-24A, HLG-80H-30A, HLG-80H-36A, HLG-80H-42A, HLG-80H-48A and HLG-80H-54A. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 195,6x61,5x38,8mm weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-30A
GTIN 4711287448930
Output voltage [V] 30
Phase 2 phase
Output current adjustment [A] 1,62...2,7
Efficiency [%] 91
Output voltage tolerance: [%] 1
Output power [W] 81
Output voltage adjustment [V] 27...33
Ripple [mV] 200
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 0
Next incoming goods:
CW 50/2024
49 units

Further delivery:
CW 11/2025
