HLG-80H-20B

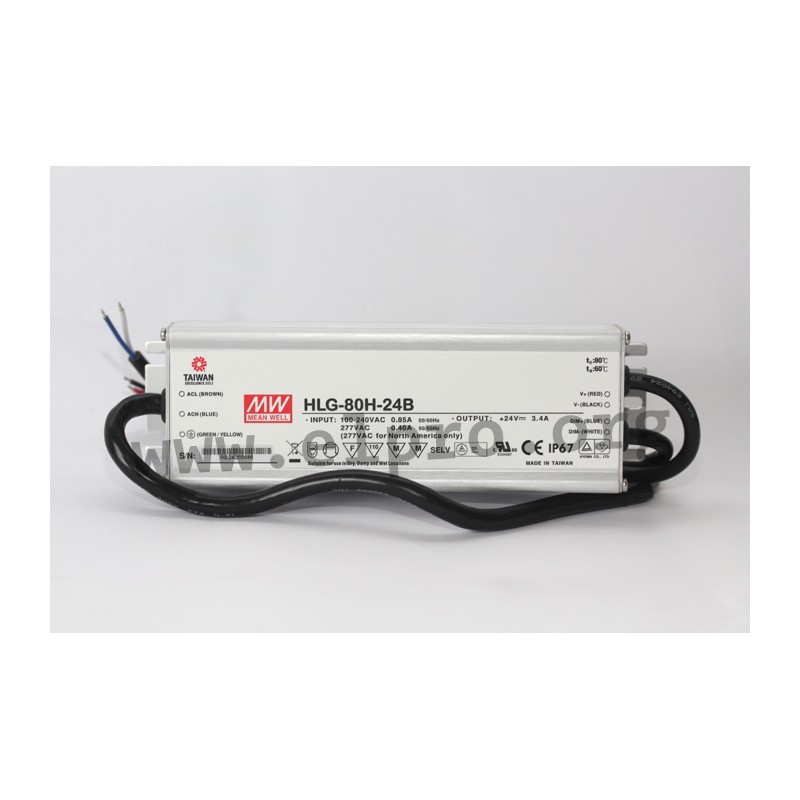

Mean Well LED driver series HLG-80H

LED drivers in an aluminium housing (IP67) with a constant current, 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature, are suitable for LED lighting applications and are dimmable by an executed control line. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12B, HLG-80H-15B, HLG-80H-20B, HLG-80H-24B, HLG-80H-30B, HLG-80H-36B, HLG-80H-42B, HLG-80H-48B and HLG-80H-54B.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 840g
HLG-80H-20B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series

HLG-80H-20B

135798 HLG-80H-20B HLG-80H-20B 4711287448886 Mean Well LED driver series HLG-80H. LED drivers in an aluminium housing (IP67) with a constant current, 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature, are suitable for LED lighting applications and are dimmable by an executed control line. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12B, HLG-80H-15B, HLG-80H-20B, HLG-80H-24B, HLG-80H-30B, HLG-80H-36B, HLG-80H-42B, HLG-80H-48B and HLG-80H-54B. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-20B
GTIN 4711287448886
Output voltage [V] 20
Phase 2 phase
Efficiency [%] 90
Output voltage tolerance: [%] 1
Output power [W] 80
Ripple [mVp-p] 150
Data Sheet

Unit price

37,39 €

Volume discounts

Quantity Unit price
50 + 36,69 €

Stock: 17
Further delivery:
CW 16/2025
