HLG-80H-C350A

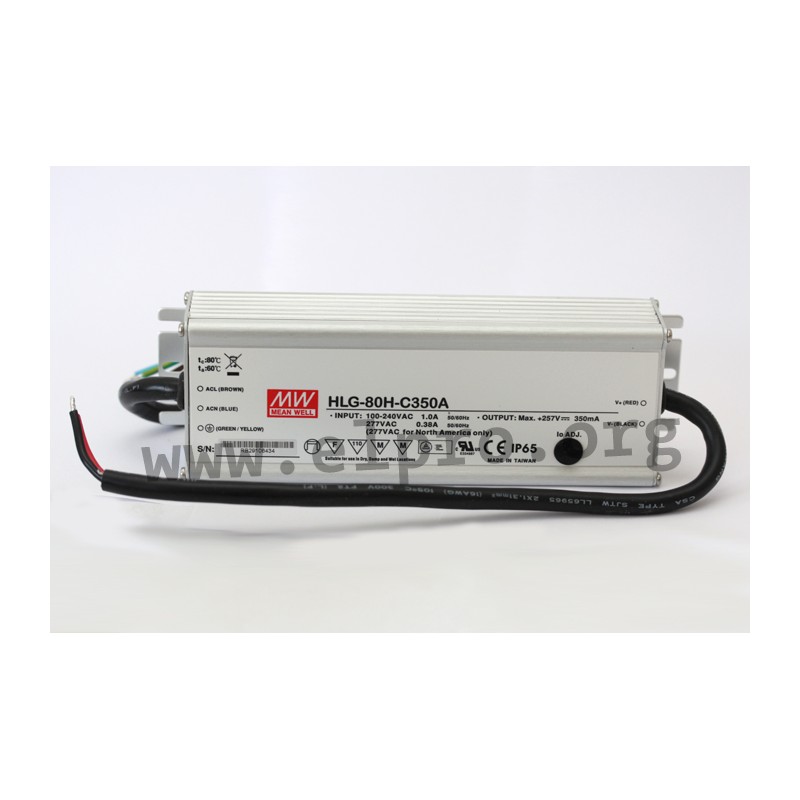

Mean Well LED driver HLG-80H-C

LED drivers in a metal housing (IP65) with a constant current, a universal input and 90W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-C350A and HLG-80H-C700A.

  • single output
  • output: 89,95 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C

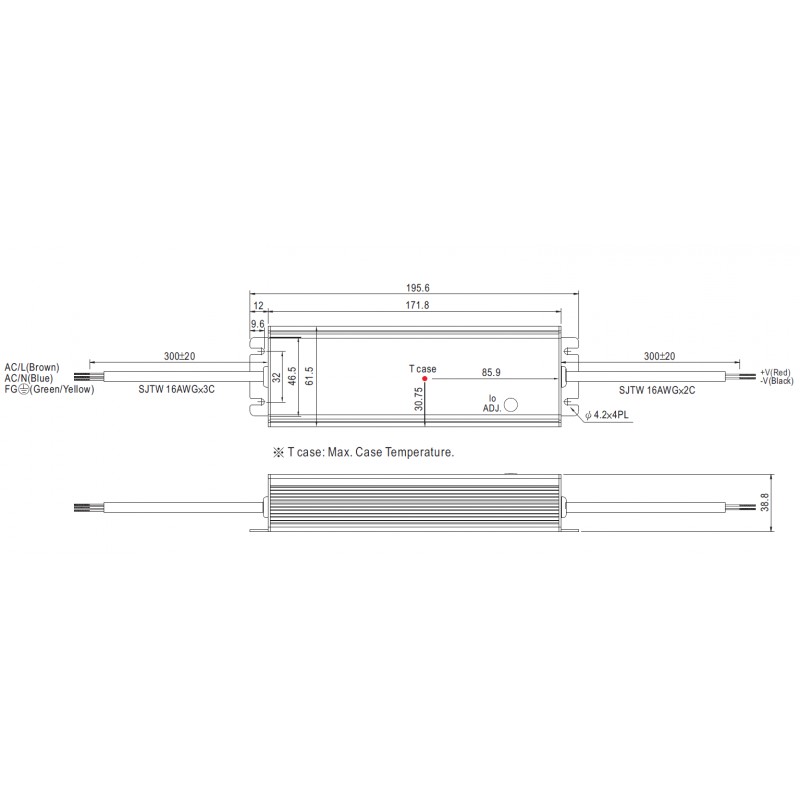

  • dimensions: 195,6x61,5x38,8mm
  • weight: 840g

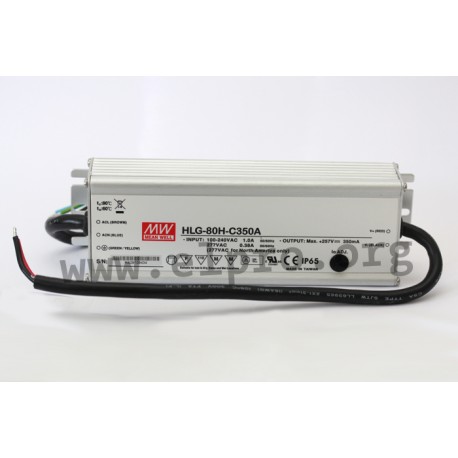

Meanwell HLG-80H-C series

HLG-80H-C350A

37726 HLG-80H-C350A HLG-80H-C350A 4711287452050 Mean Well LED driver HLG-80H-C. LED drivers in a metal housing (IP65) with a constant current, a universal input and 90W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-C350A and HLG-80H-C700A. single output output: 89,95 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C dimensions: 195,6x61,5x38,8mm weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-C350A
GTIN 4711287452050
Output voltage [V] 128...257
Phase 2 phase
Output current adjustment [A] 210...350
Efficiency [%] 91,5
Output power [W] 89,95
Ripple [mVp-p] 1000
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 41
Further delivery:
CW 16/2025
