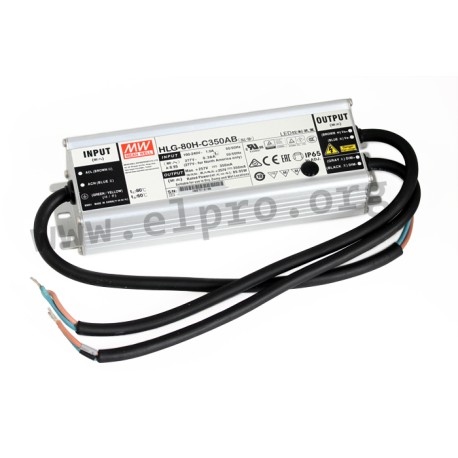

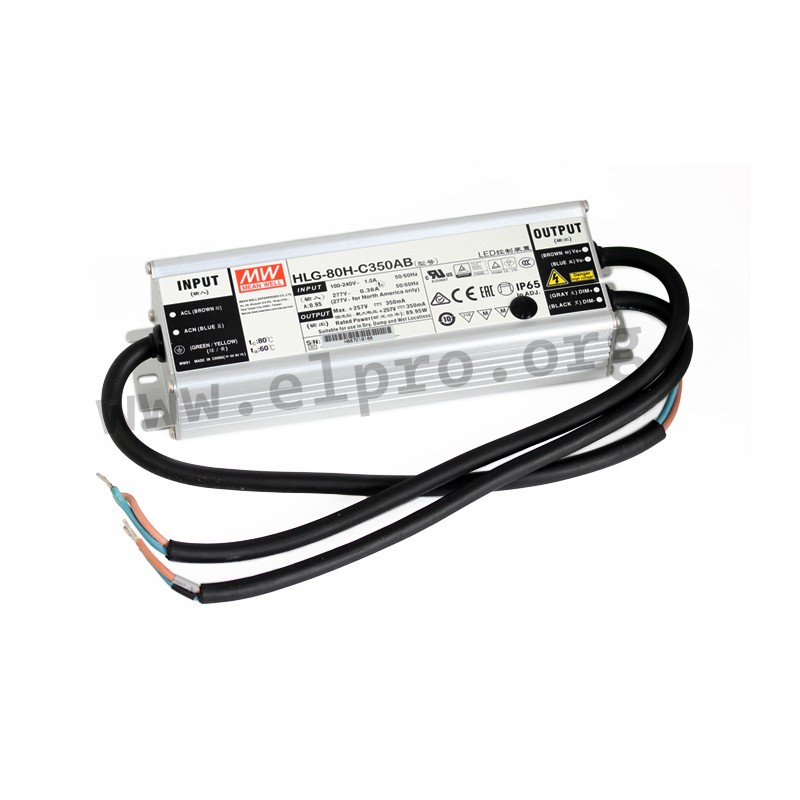

HLG-80H-C350AB

Mean Well LED driver series HLG-80H-C

LED drivers in an aluminium housing (IP65) with a high voltage output, 90W and a universal input. These devices are protected against short circuit, overload (auto recovery) as well as overvoltage, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). They comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-C350AB and HLG-80H-C700AB.

  • single output
  • output: 89,95 to 90,3W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • weight: 840g
HLG-80H-C350AB, Mean Well LED drivers, 90W, IP65, constant current, dimmable, adjustable, HLG-80H-C series

HLG-80H-C350AB

135870 HLG-80H-C350AB HLG-80H-C350AB 4711287481760 Mean Well LED driver series HLG-80H-C. LED drivers in an aluminium housing (IP65) with a high voltage output, 90W and a universal input. These devices are protected against short circuit, overload (auto recovery) as well as overvoltage, are suitable for LED lighting applications and have a 3 in 1 dimming function (1 to 10V DC, 10V PWM). They comply with EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-C350AB and HLG-80H-C700AB. single output output: 89,95 to 90,3W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-C350AB
GTIN 4711287481760
Output current range [mA] 210...350
Efficiency [%] 91,5
Output power [W] 89,95
Ripple & noise [%] 5
Output voltage range [V] 128...257
Data Sheet

Unit price

38,19 €

Volume discounts

Quantity Unit price
50 + 37,39 €

Stock: 7
Further delivery:
CW 16/2025
