HLG-60H-20A

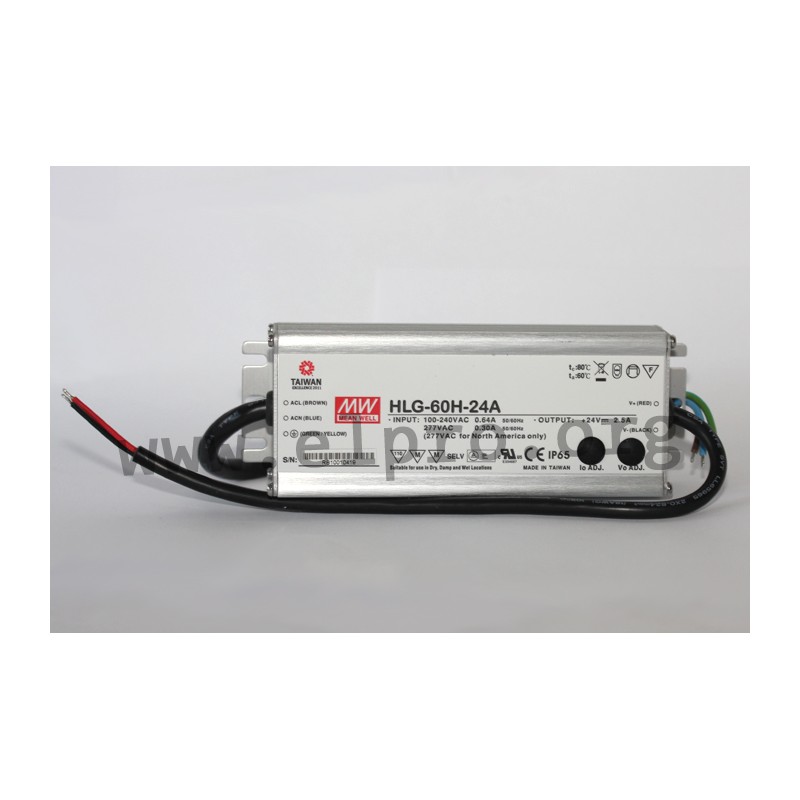

Mean Well LED driver series HLG-60H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 60W. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function and a built-in potentiometer for adjusting the current limitation as well as the output voltage. We offer the following types of this Mean Well series: HLG-60H-15A, HLG-60H-20A, HLG-60H-24A, HLG-60H-30A, HLG-60H-36A, HLG-60H-42A, HLG-60H-48A and HLG-60H-54A.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C

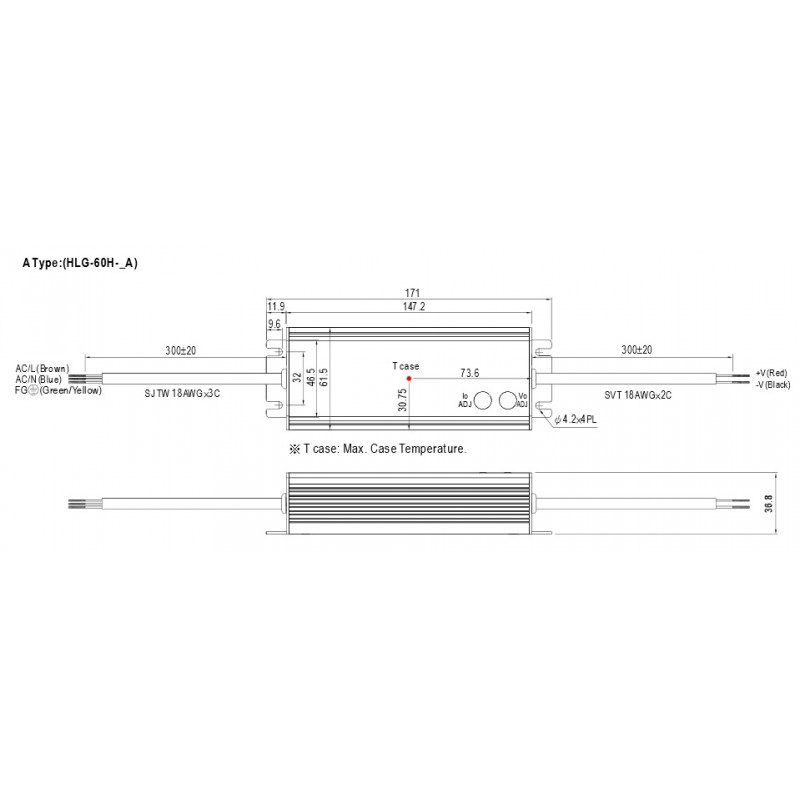

  • dimensions: 171x61,5x36,8mm
  • weight: 730g

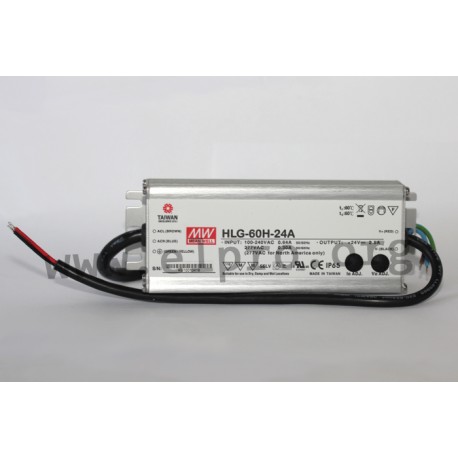

Meanwell HLG-60H_A series

HLG-60H-20A

35994 HLG-60H-20A HLG-60H-20A 4711287448602 Mean Well LED driver series HLG-60H. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 60W. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function and a built-in potentiometer for adjusting the current limitation as well as the output voltage. We offer the following types of this Mean Well series: HLG-60H-15A, HLG-60H-20A, HLG-60H-24A, HLG-60H-30A, HLG-60H-36A, HLG-60H-42A, HLG-60H-48A and HLG-60H-54A. single output output: 60 to 62,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-20A
GTIN 4711287448602
Output voltage [V] 20
Phase 2 phase
Output current adjustment [A] 1,8...3
Efficiency [%] 89
Output voltage tolerance: [%] 1
Output power [W] 60
Output voltage adjustment [V] 17...22
Ripple [mV] 150
Data Sheet

Unit price

30,09 €

Volume discounts

Quantity Unit price
50 + 27,99 €

Stock: 0
Next incoming goods:
CW 06/2025
46 units

Further delivery:
CW 16/2025
