HLG-60H-20

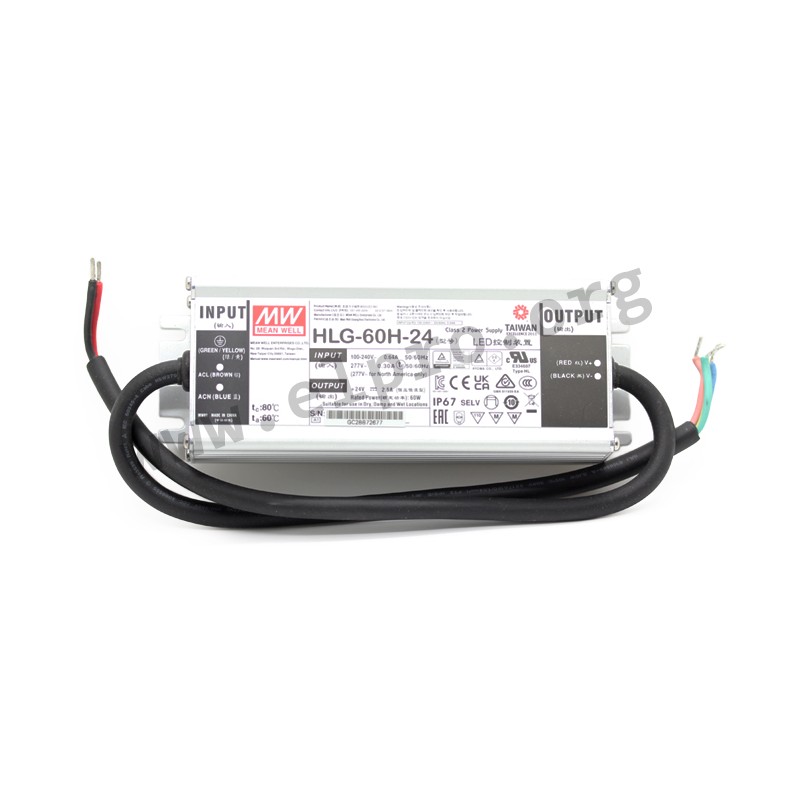

Mean Well LED driver series HLG-60H

LED drivers in a metal housing (IP67) with a constant current/constant voltage (CC/CV, fixed preset), a wide input range and 60W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-60H-15, HLG-60H-20, HLG-60H-24, HLG-60H-30, HLG-60H-36, HLG-60H-42, HLG-60H-48 and HLG-60H-54.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage: O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 730g

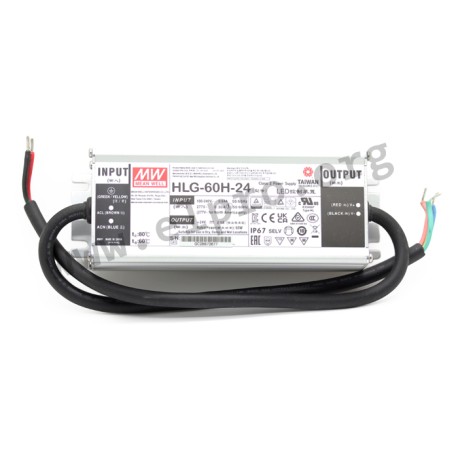

HLG-60H-20, Mean Well LED drivers, 60W, IP67, CV and CC (mixed mode), fixed preset, HLG-60H series

HLG-60H-20

135783 HLG-60H-20 HLG-60H-20 4711287448596 Mean Well LED driver series HLG-60H. LED drivers in a metal housing (IP67) with a constant current/constant voltage (CC/CV, fixed preset), a wide input range and 60W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-60H-15, HLG-60H-20, HLG-60H-24, HLG-60H-30, HLG-60H-36, HLG-60H-42, HLG-60H-48 and HLG-60H-54. single output output: 60 to 62,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage: O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-20
GTIN 4711287448596
Output voltage [V] 20
Efficiency [%] 89
Output current [A] 3
Output voltage tolerance: [%] ±1
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

30,09 €

Volume discounts

Quantity Unit price
50 + 27,99 €

Stock: 49
Further delivery:
CW 16/2025
