HLG-60H-15B

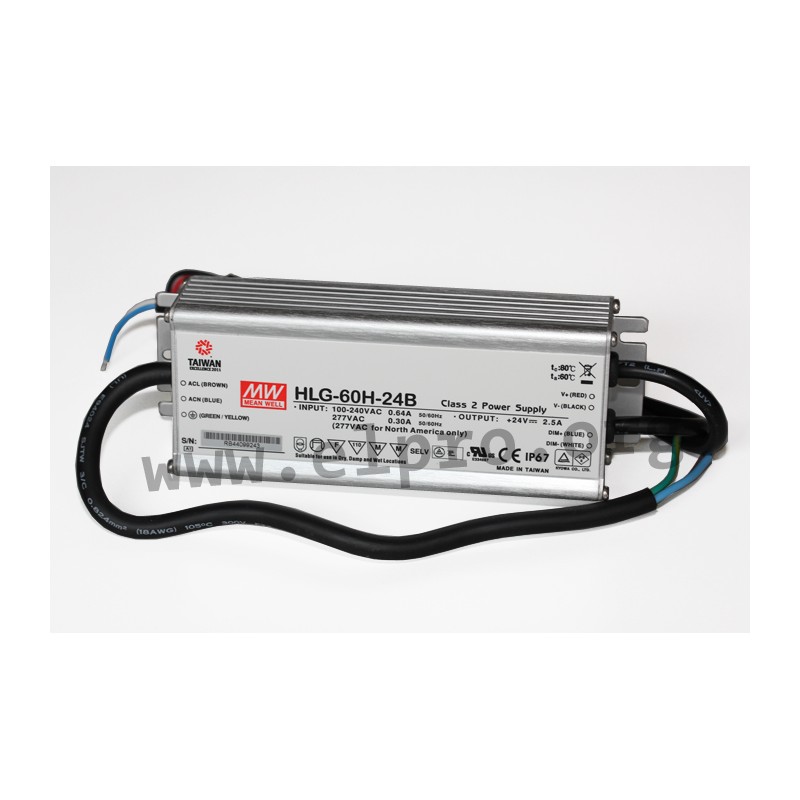

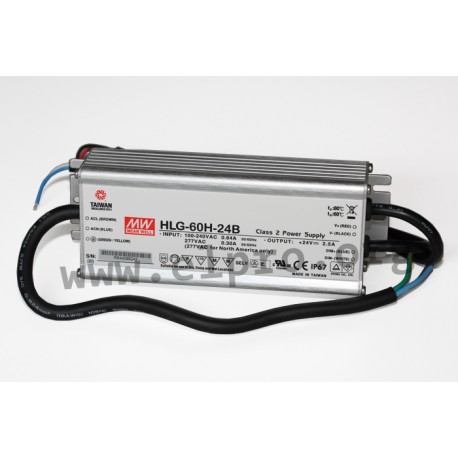

Mean Well LED driver series HLG-60H

LED drivers in a metal housing (IP67) with a wide input range, 60W, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a constant current. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-60H-15B, HLG-60H-20B, HLG-60H-24B, HLG-60H-30B, HLG-60H-36B, HLG-60H-42B, HLG-60H-48B and HLG-60H-54B.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 730g
HLG-60H-15B, Mean Well LED drivers, 60W, IP67, dimmable, HLG-60H series

HLG-60H-15B

135782 HLG-60H-15B HLG-60H-15B 4711287448589 Mean Well LED driver series HLG-60H. LED drivers in a metal housing (IP67) with a wide input range, 60W, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a constant current. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-60H-15B, HLG-60H-20B, HLG-60H-24B, HLG-60H-30B, HLG-60H-36B, HLG-60H-42B, HLG-60H-48B and HLG-60H-54B. single output output: 60 to 62,4W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-15B
GTIN 4711287448589
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 87,5
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

32,09 €

Volume discounts

Quantity Unit price
50 + 30,29 €

Stock: 9
Further delivery:
CW 16/2025
