HLG-60H-C350B

Mean Well LED driver series HLG-60H-C

LED drivers in an aluminium case (IP67) with 70W, a universal input, a constant current (CC) and a high output voltage. These devices have a 3 in 1 dimming function (adjustable output voltage 1-10V DC, 10V PWM) as well as a built-in PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are designed fanless and comply with EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-60H-C350B and HLG-60H-C700B.

  • single output
  • output: 70W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 730g

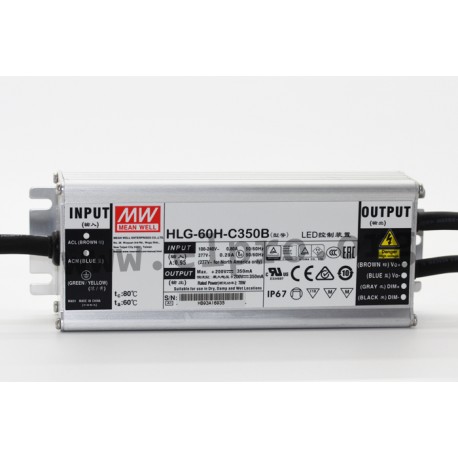

HLG-60H-C350B, Mean Well LED switching power supplies, 70W, IP67, constant current, dimmable, HLG-60H-C series

HLG-60H-C350B

135867 HLG-60H-C350B HLG-60H-C350B 4711287452029 Mean Well LED driver series HLG-60H-C. LED drivers in an aluminium case (IP67) with 70W, a universal input, a constant current (CC) and a high output voltage. These devices have a 3 in 1 dimming function (adjustable output voltage 1-10V DC, 10V PWM) as well as a built-in PFC function and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are designed fanless and comply with EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-60H-C350B and HLG-60H-C700B. single output output: 70W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-C350B
GTIN 4711287452029
Efficiency [%] 91
Output current [A] 0,35
Output power [W] 70
Ripple & noise [%] 5
Output voltage range [V] 100...200
Data Sheet

Unit price

30,69 €

Volume discounts

Quantity Unit price
50 + 28,59 €

Stock: 24
Further delivery:
CW 16/2025
