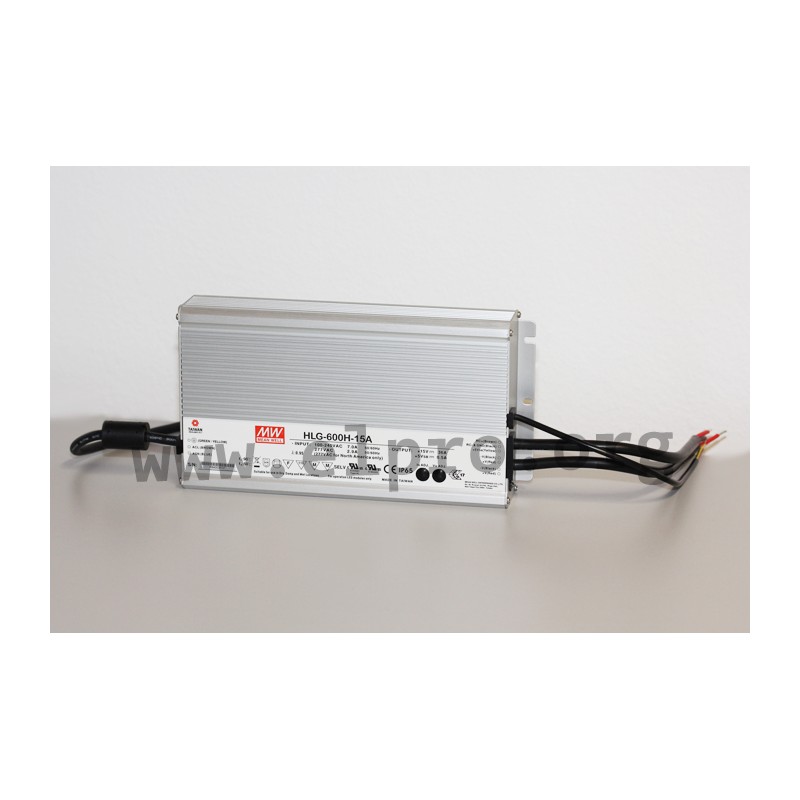

HLG-600H-48A

Mean Well LED driver series HLG-600H

LED drivers in a metal housing (IP65) with a constant voltage, 600W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications, are not dimmable. We offer the following types of this Mean Well series: HLG-600H-12A, HLG-600H-15A, HLG-600H-20A, HLG-600H-24A, HLG-600H-30A, HLG-600H-36A, HLG-600H-42A, HLG-600H-48A and HLG-600H-54A.

  • single output
  • output: 480 to 604,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

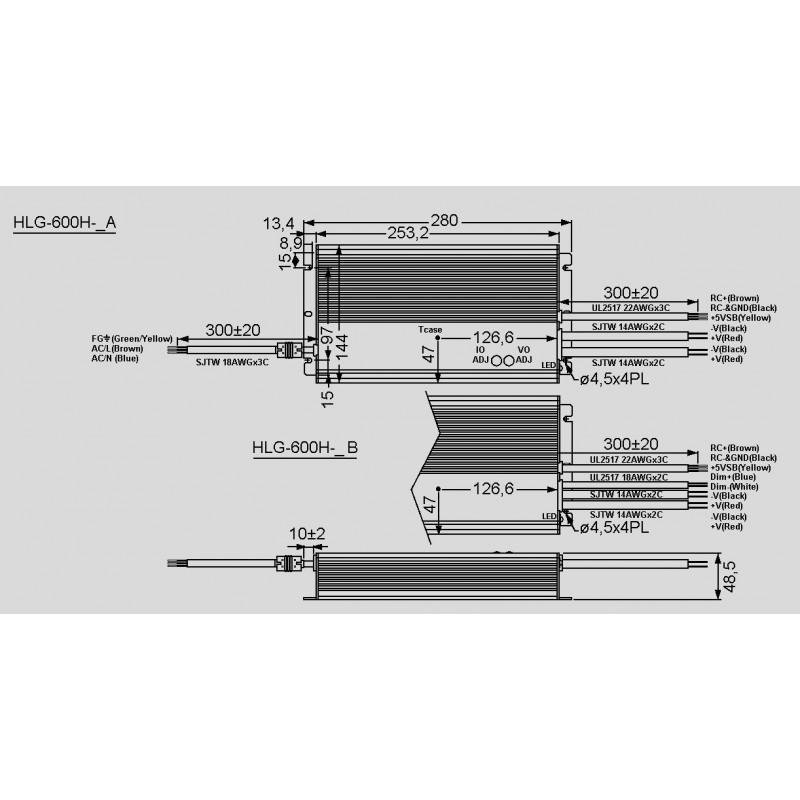

  • dimensions: 280x144x48,5mm
  • weight: 3900g
Meanwell HLG-600H_A series

HLG-600H-48A

44983 HLG-600H-48A HLG-600H-48A 4711287451947 Mean Well LED driver series HLG-600H. LED drivers in a metal housing (IP65) with a constant voltage, 600W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications, are not dimmable. We offer the following types of this Mean Well series: HLG-600H-12A, HLG-600H-15A, HLG-600H-20A, HLG-600H-24A, HLG-600H-30A, HLG-600H-36A, HLG-600H-42A, HLG-600H-48A and HLG-600H-54A. single output output: 480 to 604,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 280x144x48,5mm weight: 3900g

Specifications

manufacturer
Manufacturer's name HLG-600H-48A
GTIN 4711287451947
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 6,2...12,5
Efficiency [%] 96
Output voltage tolerance: [%] 1
Output power [W] 600
Ripple [mVp-p] 250
Output voltage adjustment [V] 40,8...50,4
Data Sheet

Unit price

169,69 €

Volume discounts

Quantity Unit price
50 + 164,09 €

Stock: 228
Further delivery:
CW 12/2025
