HLG-600H-54

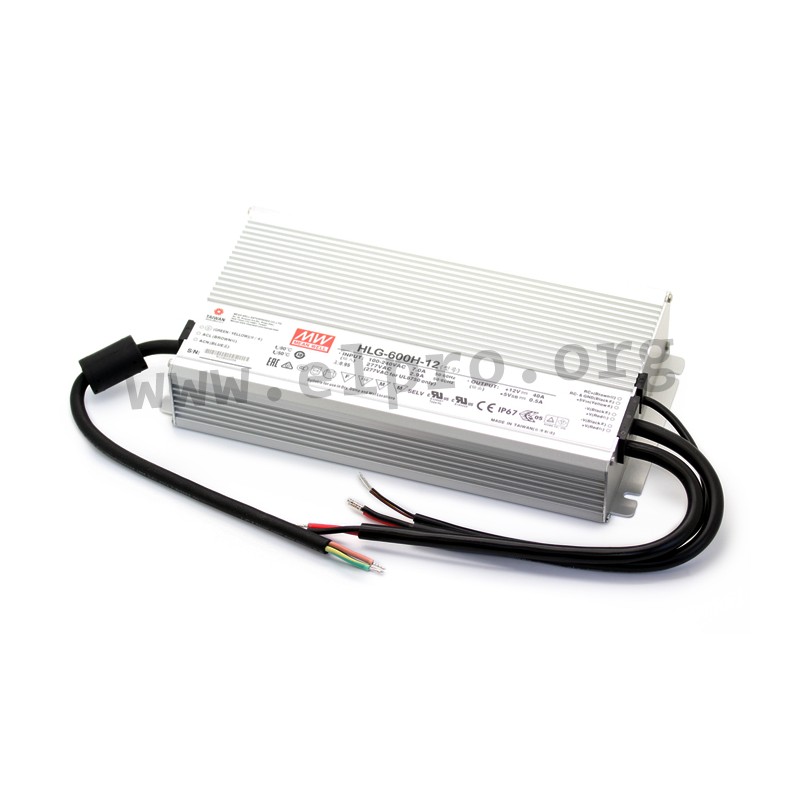

Mean Well LED driver series HLG-600H

LED drivers in a metal case (IP67) with a constant current/constant voltage, a wide input range, 600W and a typical lifetime of more than 62.000 hours. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-600H-12, HLG-600H-15, HLG-600H-20, HLG-600H-24, HLG-600H-30, HLG-600H-36, HLG-600H-42, HLG-600H-48 and HLG-600H-54.

  • single output
  • output: 480 to 604,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • maximal leakage current: <0,75mA
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 3900g

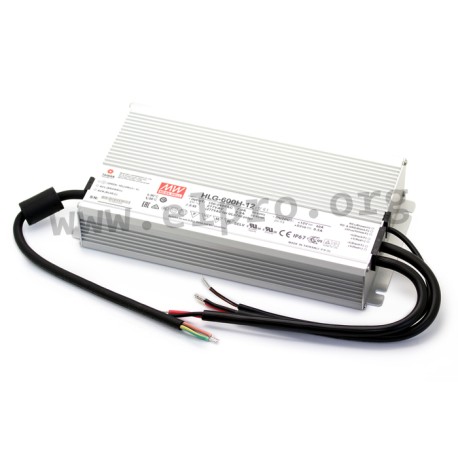

HLG-600H-54, Mean Well LED drivers, 600W, IP67, CV and CC (mixed mode), fixed preset, HLG-600H series

HLG-600H-54

135865 HLG-600H-54 HLG-600H-54 4711287451978 Mean Well LED driver series HLG-600H. LED drivers in a metal case (IP67) with a constant current/constant voltage, a wide input range, 600W and a typical lifetime of more than 62.000 hours. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-600H-12, HLG-600H-15, HLG-600H-20, HLG-600H-24, HLG-600H-30, HLG-600H-36, HLG-600H-42, HLG-600H-48 and HLG-600H-54. single output output: 480 to 604,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A maximal leakage current: &lt;0,75mA overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 3900g

Specifications

manufacturer
Manufacturer's name HLG-600H-54
GTIN 4711287451978
Output voltage [V] 54
Efficiency [%] 96
Output current [A] 11,2
Output voltage tolerance: [%] 1
Output power [W] 604,8
Ripple [mVp-p] 350
Data Sheet

Unit price

176,89 €

Volume discounts

Quantity Unit price
50 + 173,19 €

Stock: 6
Further delivery:
CW 16/2025
