HLG-600H-54B

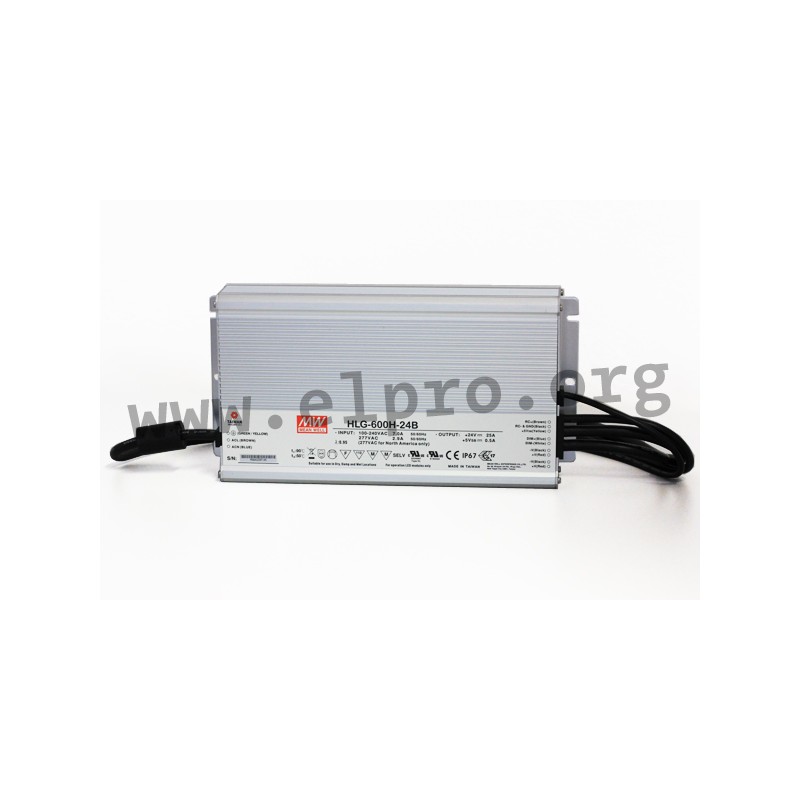

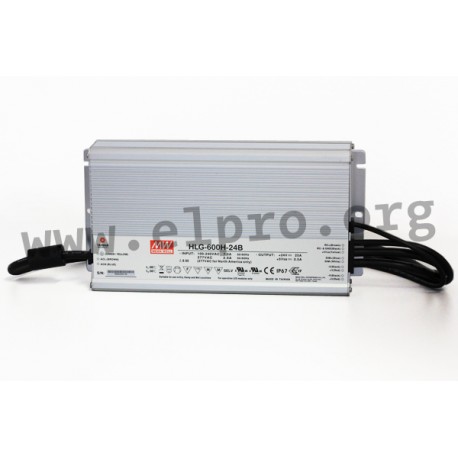

Mean Well LED driver series HLG-600H

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 600W and a constant current. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: HLG-600H-12B, HLG-600H-15B, HLG-600H-20B, HLG-600H-24B, HLG-600H-30B, HLG-600H-36B, HLG-600H-42B, HLG-600H-48B and HLG-600H-54B.

  • single output
  • output: 480 to 601,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +90°C
  • weight: 3900g

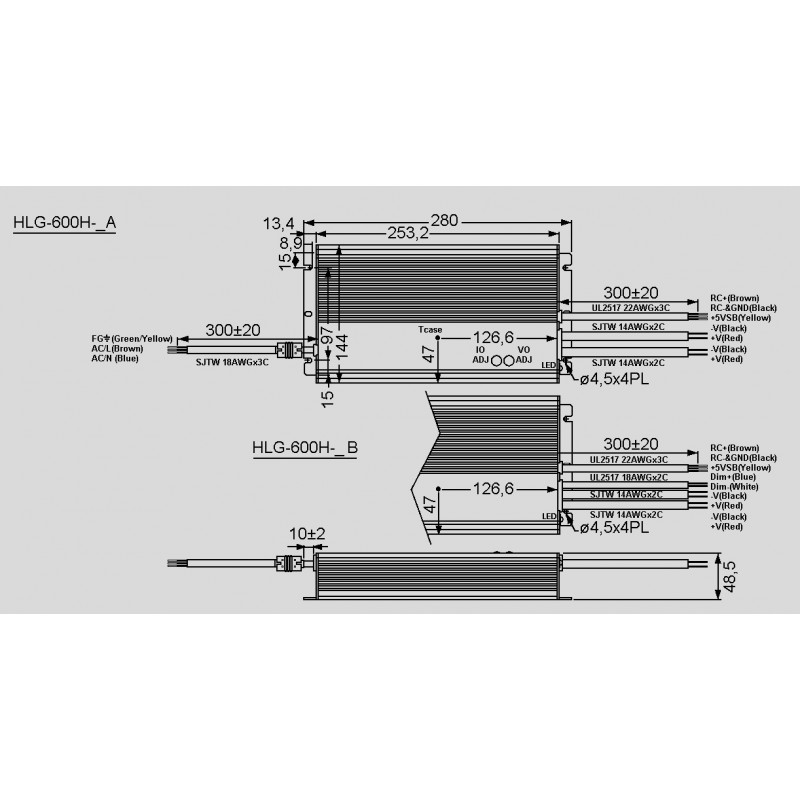

Mean Well HLG-600H-_B series

HLG-600H-54B

104621 HLG-600H-54B HLG-600H-54B 4711287452005 Mean Well LED driver series HLG-600H. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 600W and a constant current. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: HLG-600H-12B, HLG-600H-15B, HLG-600H-20B, HLG-600H-24B, HLG-600H-30B, HLG-600H-36B, HLG-600H-42B, HLG-600H-48B and HLG-600H-54B. single output output: 480 to 601,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +90°C weight: 3900g

Specifications

manufacturer
Manufacturer's name HLG-600H-54B
GTIN 4711287452005
Output voltage [V] 54
Phase 2 phase
Output current adjustment [A] 5,6...11,2
Efficiency [%] 96
Output voltage tolerance: [%] 1
Output power [W] 604,8
Output voltage adjustment [V] 45,9...56,7
Ripple [mVp-p] 350
Data Sheet

Unit price

181,59 €

Volume discounts

Quantity Unit price
50 + 177,69 €

Stock: 25
Further delivery:
CW 16/2025
