HLG-480H-54B

Mean Well LED driver series HLG-480H

LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 480W. These devices compliant with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-480H-24B, HLG-480H-30B, HLG-480H-36B, HLG-480H-42B, HLG-480H-48B and HLG-480H-54B.

  • single output
  • output: 478,8 to 480,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x125x43,8mm
  • weight: 2800g

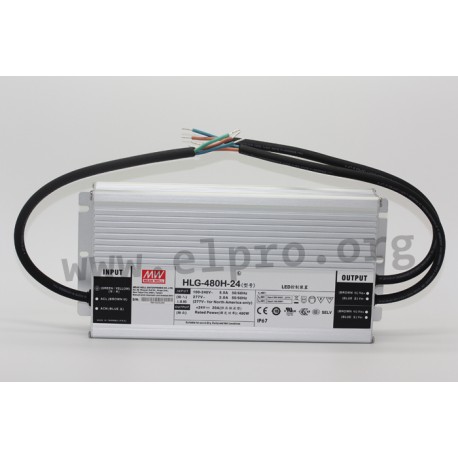

Meanwell HLG-480_B series

HLG-480H-54B

110232 HLG-480H-54B HLG-480H-54B 4711287451633 Mean Well LED driver series HLG-480H. LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 480W. These devices compliant with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-480H-24B, HLG-480H-30B, HLG-480H-36B, HLG-480H-42B, HLG-480H-48B and HLG-480H-54B. single output output: 478,8 to 480,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x125x43,8mm weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-54B
GTIN 4711287451633
Output voltage [V] 54
Efficiency [%] 95
Output current [A] 8,9
Output voltage tolerance: [%] 1
Output power [W] 480,6
Ripple [mVp-p] 350
Data Sheet

Unit price

133,29 €

Volume discounts

Quantity Unit price
50 + 130,49 €

Stock: 5
Further delivery:
CW 16/2025
