HLG-480H-54

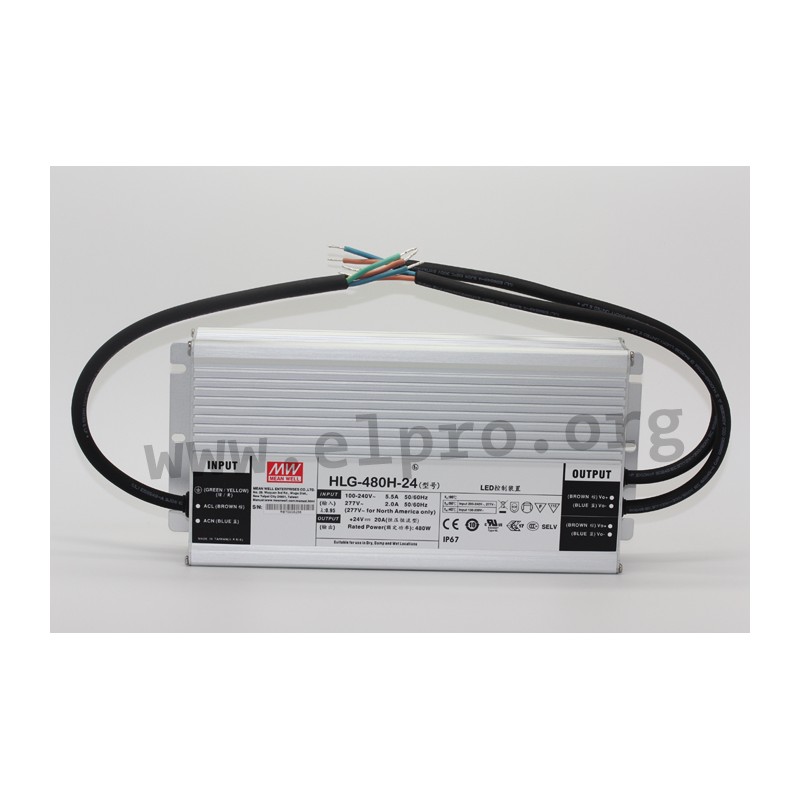

Mean Well LED driver series HLG-480H

LED drivers in a metal housing (IP67) with a constant voltage, 480W and a constant current. These devices comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications, have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-480H-24, HLG-480H-30, HLG-480H-36, HLG-480H-42, HLG-480H-48 and HLG-480H-54.

  • single output
  • output: 478,8 to 480,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x125x43,8mm
  • weight: 2800g

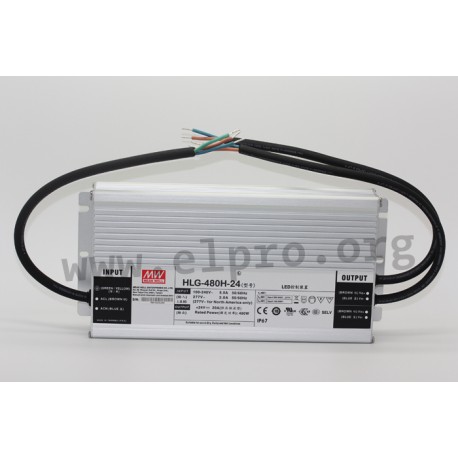

Meanwell HLG-480H series

HLG-480H-54

110230 HLG-480H-54 HLG-480H-54 4711287451602 Mean Well LED driver series HLG-480H. LED drivers in a metal housing (IP67) with a constant voltage, 480W and a constant current. These devices comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications, have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-480H-24, HLG-480H-30, HLG-480H-36, HLG-480H-42, HLG-480H-48 and HLG-480H-54. single output output: 478,8 to 480,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x125x43,8mm weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-54
GTIN 4711287451602
Output voltage [V] 54
Efficiency [%] 95
Output current [A] 8,9
Output voltage tolerance: [%] 1
Output power [W] 480,6
Ripple [mVp-p] 350
Data Sheet

Unit price

123,99 €

Volume discounts

Quantity Unit price
50 + 121,39 €

Stock: 1
Further delivery:
CW 17/2025
