HLG-480H-36A

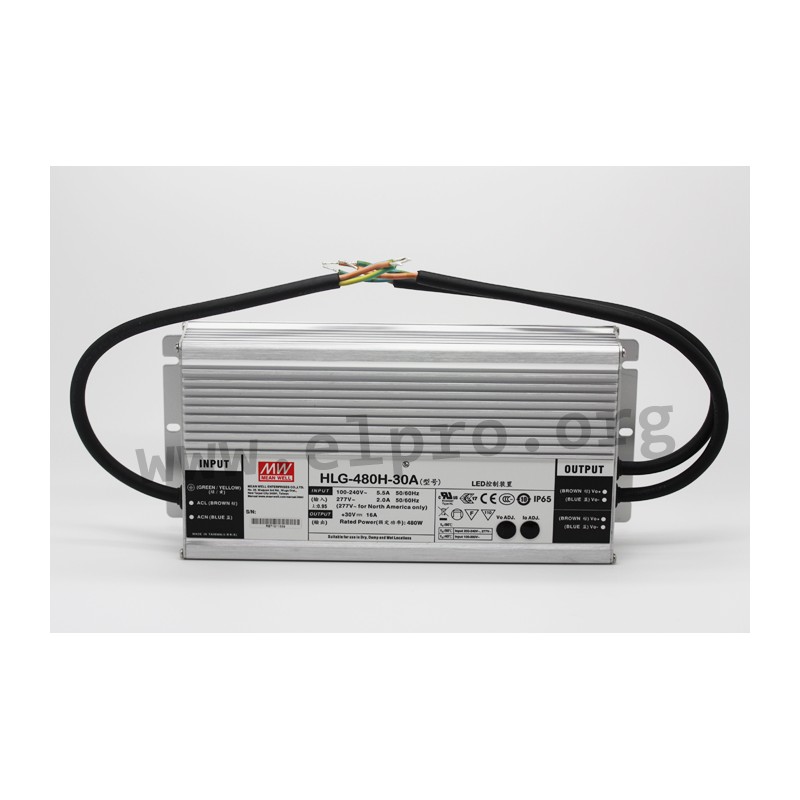

Mean Well LED driver series HLG-480H

LED drivers in an aluminium housing (IP65) with a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and 480W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function, are not dimmable and comply with EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-480H-24A, HLG-480H-30A, HLG-480H-36A, HLG-480H-42A, HLG-480H-48A and HLG-480H-54A.

  • single output
  • output: 478,8 to 480,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x125x43,8mm
  • weight: 2800g

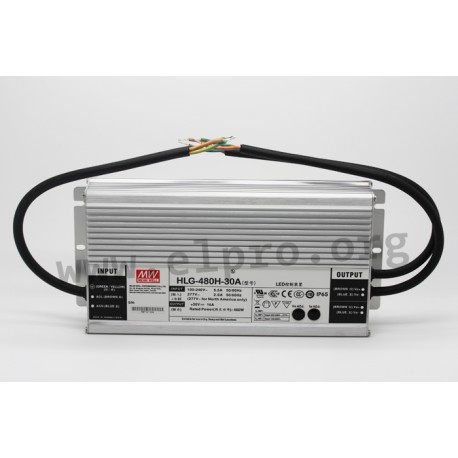

Meanwell HLG-480_A series

HLG-480H-36A

110222 HLG-480H-36A HLG-480H-36A 4711287451466 Mean Well LED driver series HLG-480H. LED drivers in an aluminium housing (IP65) with a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and 480W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function, are not dimmable and comply with EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-480H-24A, HLG-480H-30A, HLG-480H-36A, HLG-480H-42A, HLG-480H-48A and HLG-480H-54A. single output output: 478,8 to 480,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x125x43,8mm weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-36A
GTIN 4711287451466
Output voltage [V] 36
Efficiency [%] 95
Output current [A] 13,3
Output voltage tolerance: [%] 1
Output power [W] 478,8
Ripple [mVp-p] 250
Data Sheet

Unit price

118,49 €

Volume discounts

Quantity Unit price
50 + 114,59 €

Stock: 42
Further delivery:
CW 16/2025
