HLG-480H-C2100AB

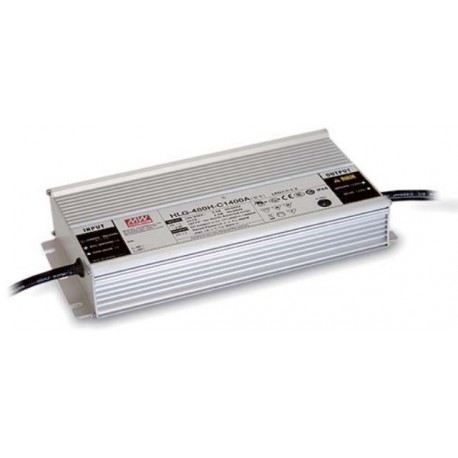

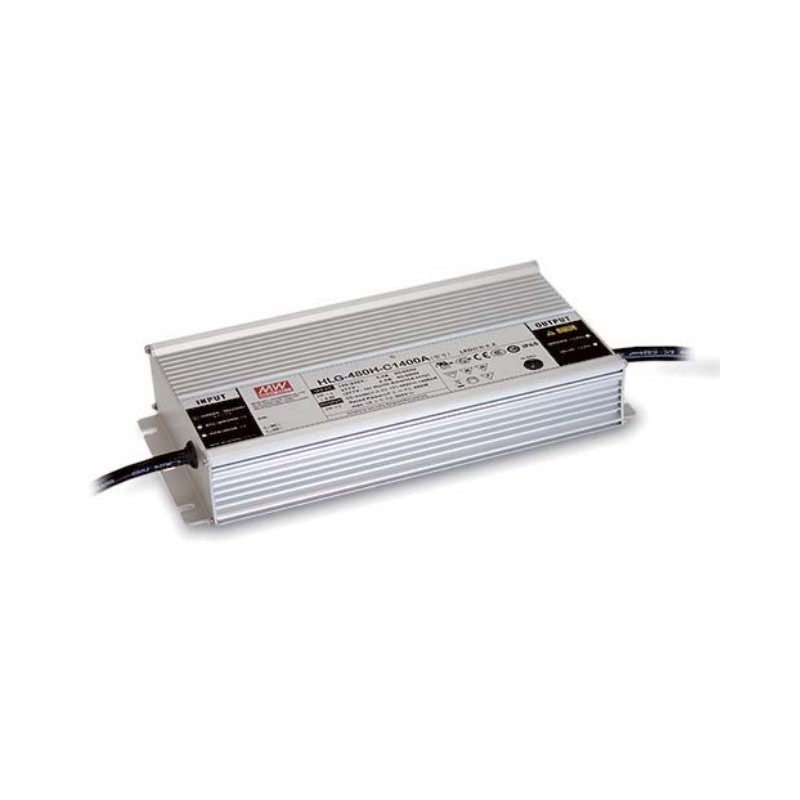

Mean Well LED driver series HLG-480H-C

LED drivers in a metal case (IP65) with a constant current, 480W, a universal input and a typical lifetime of more than 62.000 hours. These devices are suitable for LED lighting applications, are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400AB, HLG-480H-C1750AB, HLG-480H-C2100AB, HLG-480H-C2800AB and HLG-480H-C3500AB.

  • single output
  • output: 479 to 481W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 bis +90°C
  • weight: 2800g
HLG-480H-C2100AB, Mean Well LED switching power supplies, 480W, IP65, adjustable, dimmable, HLG-480H-C series

HLG-480H-C2100AB

135886 HLG-480H-C2100AB HLG-480H-C2100AB 4711287453002 Mean Well LED driver series HLG-480H-C. LED drivers in a metal case (IP65) with a constant current, 480W, a universal input and a typical lifetime of more than 62.000 hours. These devices are suitable for LED lighting applications, are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400AB, HLG-480H-C1750AB, HLG-480H-C2100AB, HLG-480H-C2800AB and HLG-480H-C3500AB. single output output: 479 to 481W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 bis +90°C weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-C2100AB
GTIN 4711287453002
Output current tolerance [%] 5
Efficiency [%] 95
Output current [A] 2,1
Output power [W] 481
Output voltage range [V] 114...229
Data Sheet

Unit price

128,09 €

Volume discounts

Quantity Unit price
50 + 123,79 €

Stock: 29
Further delivery:
CW 16/2025
