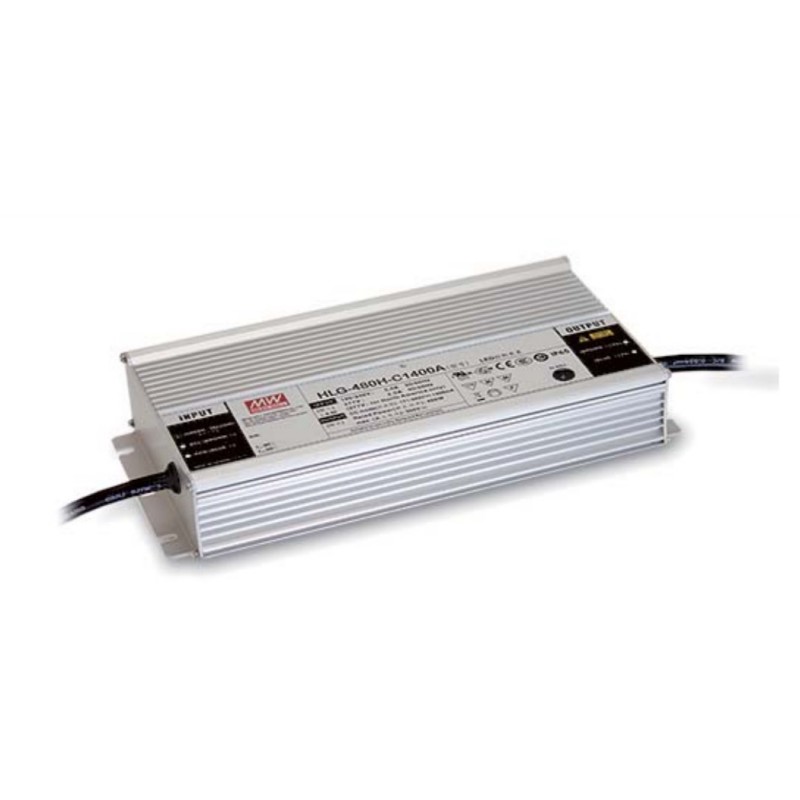

HLG-480H-C2800A

Mean Well LED driver series HLG-480H-C

LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the constant current and 480W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They comply with EN62384, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400A, HLG-480H-C1750A, HLG-480H-C2100A, HLG-480H-C2800A and HLG-480H-C3500A.

  • single output
  • output: 479 to 481W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +95°C
  • weight: 2800g
HLG-480H-C2800A, Mean Well LED switching power supplies, 480W, IP65, constant current, HLG-480H-CA series

HLG-480H-C2800A

119235 HLG-480H-C2800A HLG-480H-C2800A 4711287453033 Mean Well LED driver series HLG-480H-C. LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the constant current and 480W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They comply with EN62384, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400A, HLG-480H-C1750A, HLG-480H-C2100A, HLG-480H-C2800A and HLG-480H-C3500A. single output output: 479 to 481W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 35A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +95°C weight: 2800g

Specifications

manufacturer
Manufacturer's name HLG-480H-C2800A
GTIN 4711287453033
Output current tolerance [%] 5
Output current [mA] 2800
Efficiency [%] 95
Output power [W] 479
Output voltage range [V] 85...171
Data Sheet

Unit price

118,49 €

Volume discounts

Quantity Unit price
50 + 114,59 €

Stock: 2
Further delivery:
CW 16/2025
