HLG-40H-20A

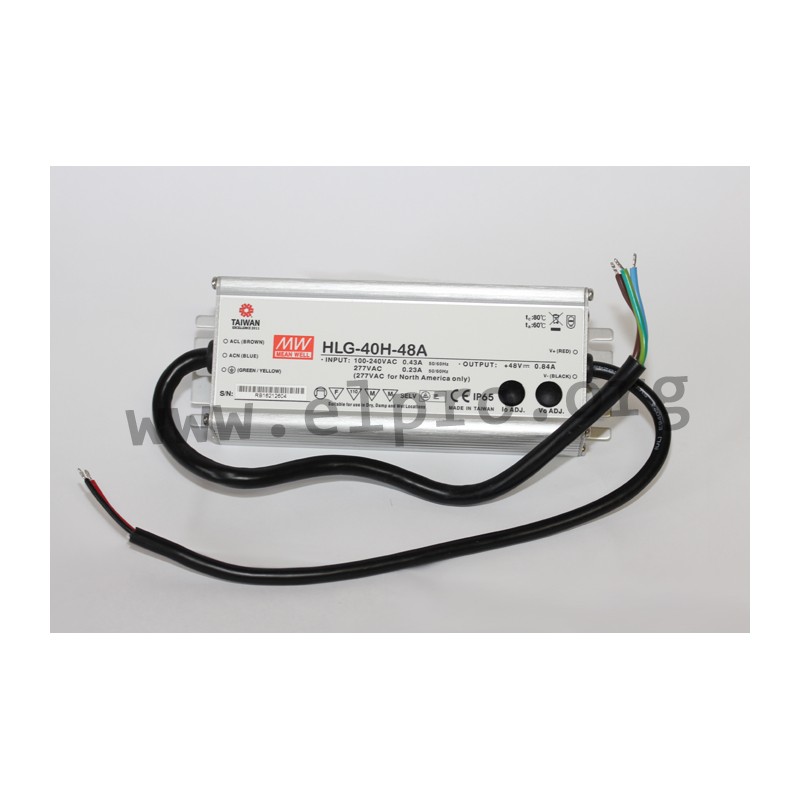

Mean Well LED driver series HLG-40H

LED drivers in a metal housing (IP65) with a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HLG-40H-12A, HLG-40H-15A, HLG-40H-20A, HLG-40H-24A, HLG-40H-30A, HLG-40H-36A, HLG-40H-42A, HLG-40H-48A and HLG-40H-54A.

  • single output
  • output: 39,96 to 40,5W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V
  • operating temperature: -40 to +80°C

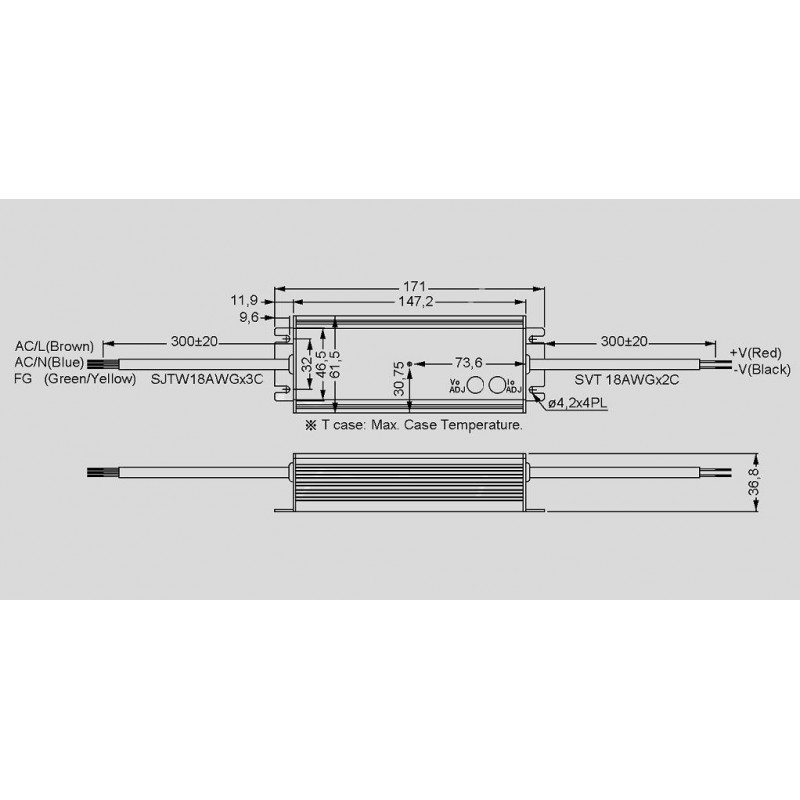

  • dimensions: 171x61,5x36,8mm
  • weight: 730g

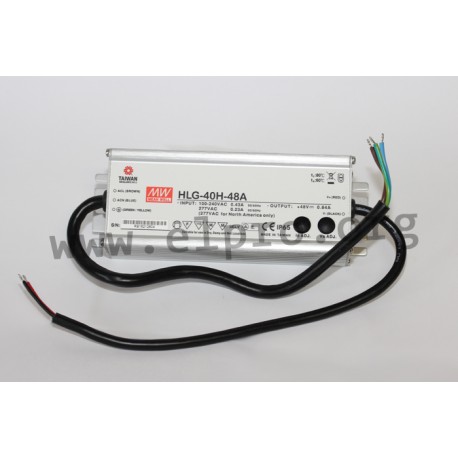

Meanwell HLG-40H series

HLG-40H-20A

35990 HLG-40H-20A HLG-40H-20A 4711287448367 Mean Well LED driver series HLG-40H. LED drivers in a metal housing (IP65) with a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HLG-40H-12A, HLG-40H-15A, HLG-40H-20A, HLG-40H-24A, HLG-40H-30A, HLG-40H-36A, HLG-40H-42A, HLG-40H-48A and HLG-40H-54A. single output output: 39,96 to 40,5W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-40H-20A
GTIN 4711287448367
Output voltage [V] 20
Phase 2 phase
Output current adjustment [A] 1,2...2
Efficiency [%] 88
Output voltage tolerance: [%] 1
Output power [W] 40
Output voltage adjustment [V] 17...22
Ripple [mV] 150
Data Sheet

Unit price

28,89 €

Volume discounts

Quantity Unit price
50 + 26,89 €

Stock: 22
Further delivery:
CW 12/2025
