HLG-40H-20AB

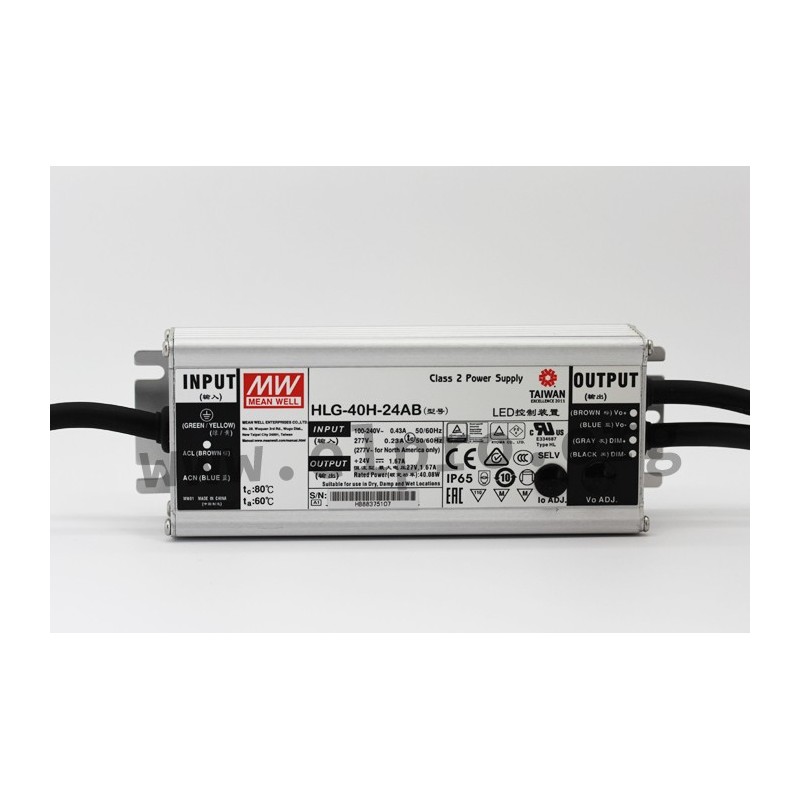

Mean Well LED driver series HLG-40H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), 40W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are suitable for LED lighting applications, are dimmable through a control line and comply with UL60950-1, EN6000950-1, EN55015 as well as EN61000-3-2 class C. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overcurrent, overvoltage, overtemperature as well as short circuit. We offer the following types of this Mean Well series: HLG-40H-12AB, HLG-40H-15AB, HLG-40H-20AB, HLG-40H-24AB, HLG-40H-30AB, HLG-40H-36AB, HLG-40H-42AB, HLG-40H-48AB and HLG-40H-54AB.

  • single output
  • output: 39,96 to 40,08W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 171x61,5x36,8mm
  • weight: 730g
HLG-40H-20AB, Mean Well LED drivers, 40W, IP65, CV and CC (mixed mode), dimmable, adjustable, HLG-40H series

HLG-40H-20AB

244541 HLG-40H-20AB HLG-40H-20AB 4711287481012 Mean Well LED driver series HLG-40H. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), 40W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are suitable for LED lighting applications, are dimmable through a control line and comply with UL60950-1, EN6000950-1, EN55015 as well as EN61000-3-2 class C. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overcurrent, overvoltage, overtemperature as well as short circuit. We offer the following types of this Mean Well series: HLG-40H-12AB, HLG-40H-15AB, HLG-40H-20AB, HLG-40H-24AB, HLG-40H-30AB, HLG-40H-36AB, HLG-40H-42AB, HLG-40H-48AB and HLG-40H-54AB. single output output: 39,96 to 40,08W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-40H-20AB
GTIN 4711287481012
Output voltage [V] 20
Efficiency [%] 88
Output current [A] 2
Output voltage tolerance: [%] 1
Output power [W] 40
Ripple [mVp-p] 150
Data Sheet

Unit price

31,79 €

Stock: 0
Further delivery:
CW 16/2025
