HLG-40H-15

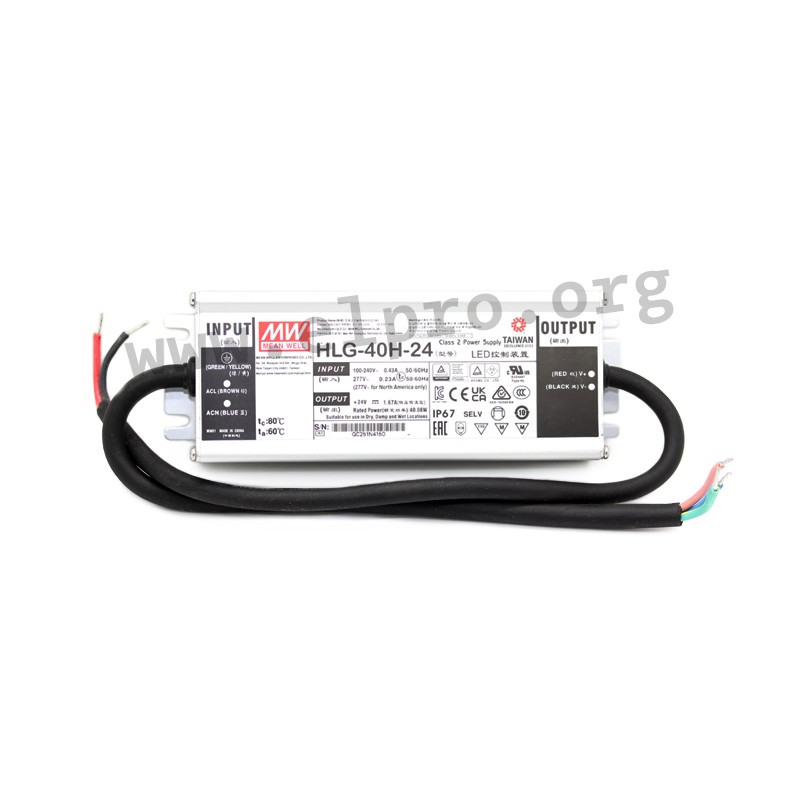

Mean Well LED driver series HLG-40H

LED drivers in a metal housing (IP67) with a constant current/constant voltage (fixed preset), a wide input range and 40W. These SELV compliant devices are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-40H-12, HLG-40H-15, HLG-40H-20, HLG-40H-24, HLG-40H-30, HLG-40H-36, HLG-40H-42, HLG-40H-48 and HLG-40H-54.

  • single output
  • output: 39,96 to 40,5W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 730g
HLG-40H-15, Mean Well LED drivers, 40W, IP67, CV and CC (mixed mode), fixed preset, HLG-40H series

HLG-40H-15

135767 HLG-40H-15 HLG-40H-15 4711287448329 Mean Well LED driver series HLG-40H. LED drivers in a metal housing (IP67) with a constant current/constant voltage (fixed preset), a wide input range and 40W. These SELV compliant devices are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-40H-12, HLG-40H-15, HLG-40H-20, HLG-40H-24, HLG-40H-30, HLG-40H-36, HLG-40H-42, HLG-40H-48 and HLG-40H-54. single output output: 39,96 to 40,5W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-40H-15
GTIN 4711287448329
Output voltage [V] 15
Efficiency [%] 86,5
Output current [A] 2,67
Output voltage tolerance: [%] ±2
Output power [W] 40,05
Ripple [mVp-p] 150
Data Sheet

Unit price

28,89 €

Volume discounts

Quantity Unit price
50 + 26,89 €

Stock: 12
Further delivery:
CW 16/2025
