HLG-40H-12B

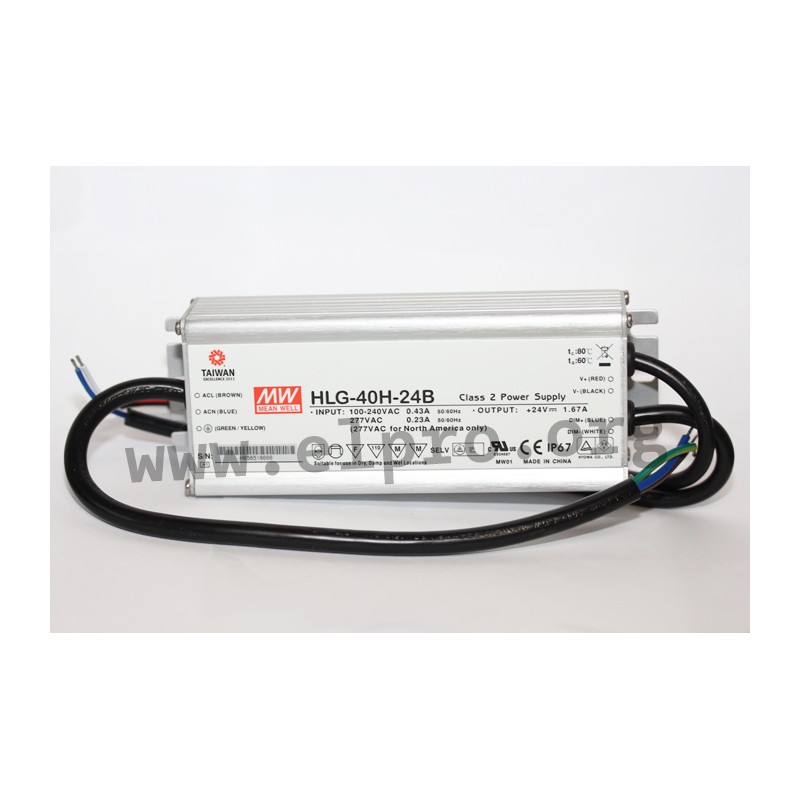

Mean Well LED driver series HLG-40H

LED drivers in an aluminium housing (IP67) with a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 40W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a control line as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-40H-12B, HLG-40H-15B, HLG-40H-20B, HLG-40H-24B, HLG-40H-30B, HLG-40H-36B, HLG-40H-42B, HLG-40H-48B and HLG-40H-54B.

  • single output
  • output: 39,96 to 40,5W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 171x61,5x36,8mm
  • weight: 730g

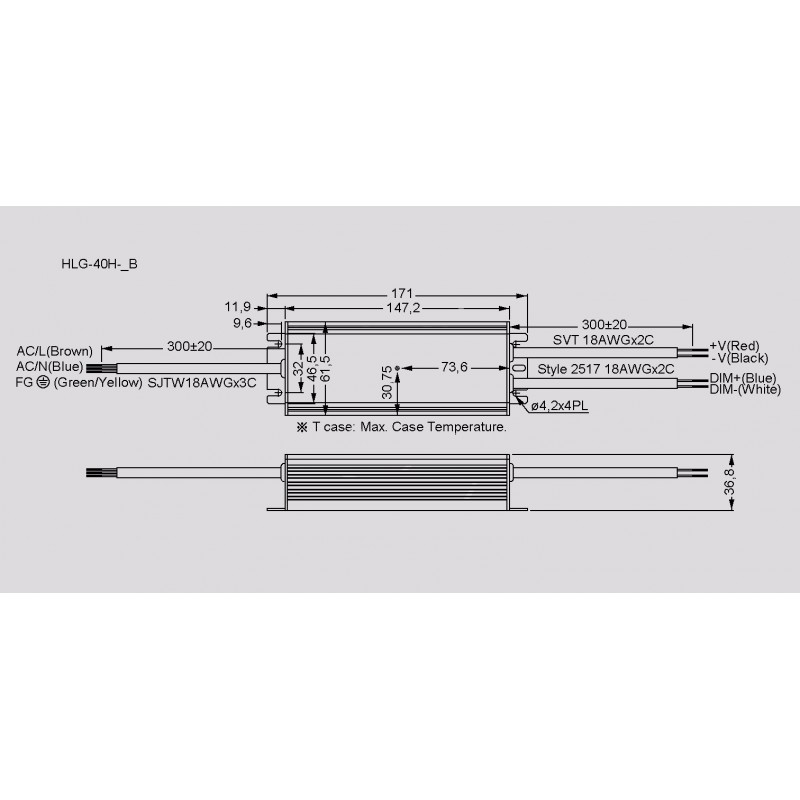

Mean Well HLG-40H-_B series

HLG-40H-12B

104543 HLG-40H-12B HLG-40H-12B 4711287448312 Mean Well LED driver series HLG-40H. LED drivers in an aluminium housing (IP67) with a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 40W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a control line as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-40H-12B, HLG-40H-15B, HLG-40H-20B, HLG-40H-24B, HLG-40H-30B, HLG-40H-36B, HLG-40H-42B, HLG-40H-48B and HLG-40H-54B. single output output: 39,96 to 40,5W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-40H-12B
GTIN 4711287448312
Output voltage [V] 12
Efficiency [%] 86,5
Output voltage tolerance: [%] 2,5
Output power [W] 39,96
Ripple [mVp-p] 150
Output voltage adjustment [V] 10,8...13,5
Data Sheet

Unit price

31,09 €

Volume discounts

Quantity Unit price
50 + 29,39 €

Stock: 0
