HLG-320H-48A

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP65) with a constant voltage, 320W and a built-in potentiometer for adjusting the current limitation / output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12A, HLG-320H-15A, HLG-320H-20A, HLG-320H-24A, HLG-320H-30A, HLG-320H-36A, HLG-320H-42A, HLG-320H-48A and HLG-320H-54A.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

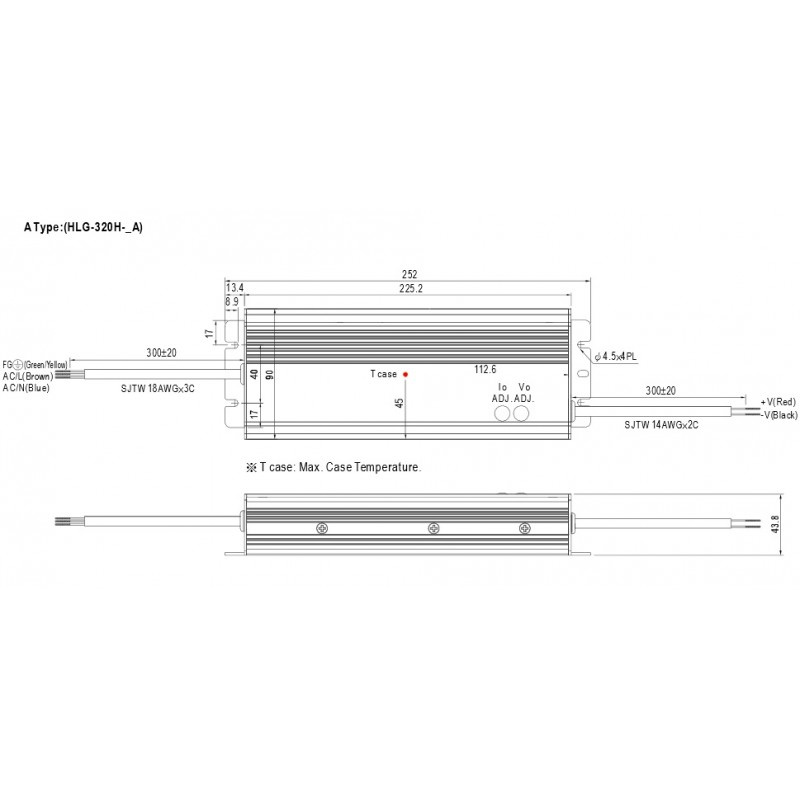

  • dimensions: 252x90x43,8mm
  • weight: 1880g
Meanwell HLG-320H series

HLG-320H-48A

36032 HLG-320H-48A HLG-320H-48A 4711287450971 Mean Well LED driver series HLG-320H. LED drivers in a metal housing (IP65) with a constant voltage, 320W and a built-in potentiometer for adjusting the current limitation / output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12A, HLG-320H-15A, HLG-320H-20A, HLG-320H-24A, HLG-320H-30A, HLG-320H-36A, HLG-320H-42A, HLG-320H-48A and HLG-320H-54A. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-48A
GTIN 4711287450971
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 3,35...6,7
Efficiency [%] 95
Output voltage tolerance: [%] 1
Output power [W] 321,6
Output voltage adjustment [V] 43...52
Ripple [mV] 250
Data Sheet

Unit price

70,49 €

Volume discounts

Quantity Unit price
50 + 68,69 €

Stock: 107
Next incoming goods:
CW 03/2025
489 units

Further delivery:
CW 10/2025
