HLG-320H-20A

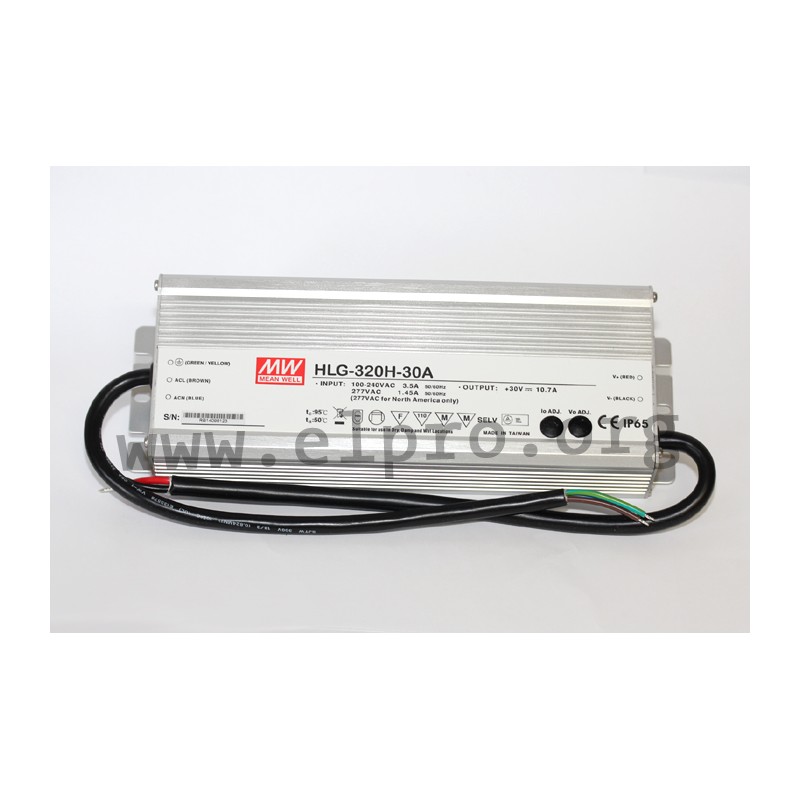

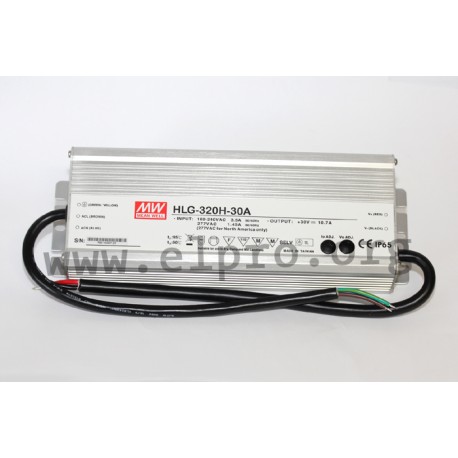

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP65) with a constant voltage, 320W and a built-in potentiometer for adjusting the current limitation / output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12A, HLG-320H-15A, HLG-320H-20A, HLG-320H-24A, HLG-320H-30A, HLG-320H-36A, HLG-320H-42A, HLG-320H-48A and HLG-320H-54A.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

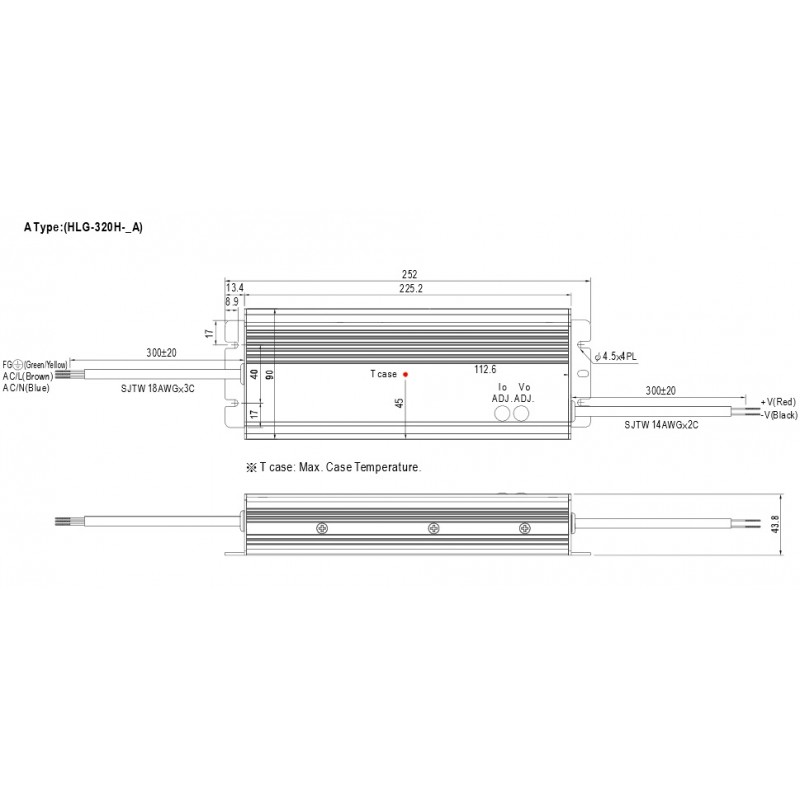

  • dimensions: 252x90x43,8mm
  • weight: 1880g
Meanwell HLG-320H series

HLG-320H-20A

36025 HLG-320H-20A HLG-320H-20A 4711287450926 Mean Well LED driver series HLG-320H. LED drivers in a metal housing (IP65) with a constant voltage, 320W and a built-in potentiometer for adjusting the current limitation / output voltage. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12A, HLG-320H-15A, HLG-320H-20A, HLG-320H-24A, HLG-320H-30A, HLG-320H-36A, HLG-320H-42A, HLG-320H-48A and HLG-320H-54A. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-20A
GTIN 4711287450926
Output voltage [V] 20
Phase 2 phase
Output current adjustment [A] 7,5...15
Efficiency [%] 93,5
Output voltage tolerance: [%] 1,5
Output power [W] 300
Output voltage adjustment [V] 17...22
Ripple [mV] 150
