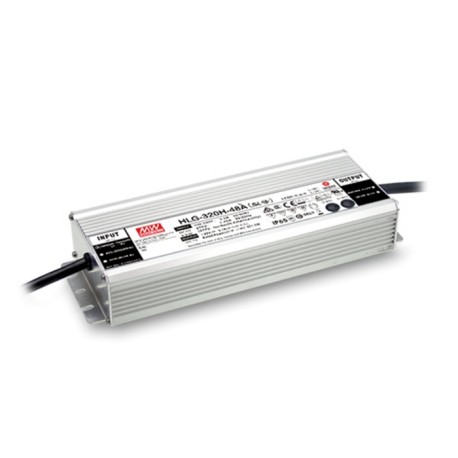

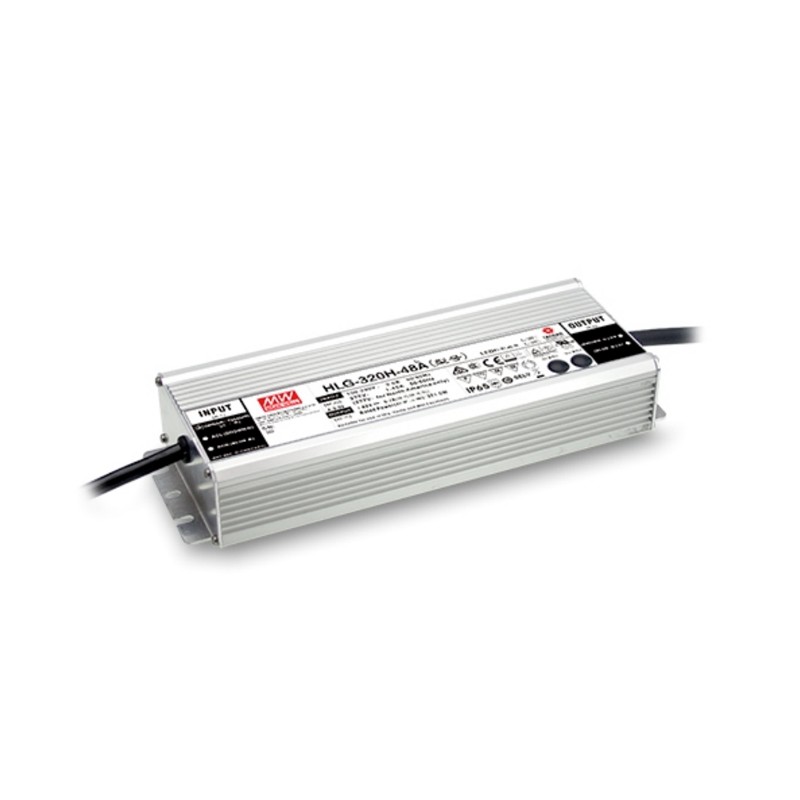

HLG-320H-15C

Mean Well LED driver series HLG-320H

LED drivers in a metal housing with 320W, terminal blocks and a constant current/voltage. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: HLG-320H-12C, HLG-320H-15C, HLG-320H-20C, HLG-320H-24C, HLG-320H-30C, HLG-320H-36C, HLG-320H-42C, HLG-320H-48C and HLG-320H-54C.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 252x0x43,8mm
  • weight: 1880g
HLG-320H-15C, Mean Well LED drivers, 320W, CV and CC (mixed mode), HLG-320H series

HLG-320H-15C

244695 HLG-320H-15C HLG-320H-15C Mean Well LED driver series HLG-320H. LED drivers in a metal housing with 320W, terminal blocks and a constant current/voltage. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: HLG-320H-12C, HLG-320H-15C, HLG-320H-20C, HLG-320H-24C, HLG-320H-30C, HLG-320H-36C, HLG-320H-42C, HLG-320H-48C and HLG-320H-54C. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 252x0x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-15C
Output voltage [V] 15
Efficiency [%] 92,5
Output current [A] 19
Output voltage tolerance: [%] 2
Output power [W] 285
Ripple [mVp-p] 150
Data Sheet

Unit price

78,09 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 504 units or
multiples of 504.
