HLG-320H-15B

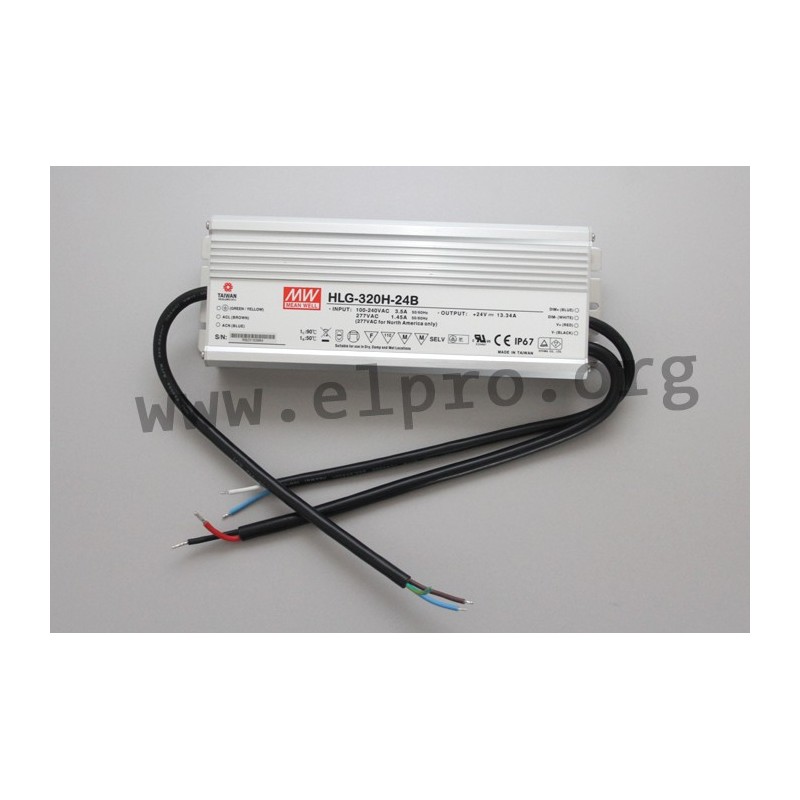

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 320W. These devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-320H-12B, HG-320H-15B, HLG-320H-20B, HLG-320H-24B, HLG-320H-30B, HLG-320H-36B, HLG-320H-42B, HLG-320H-48B and HLG-320H-54B.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g

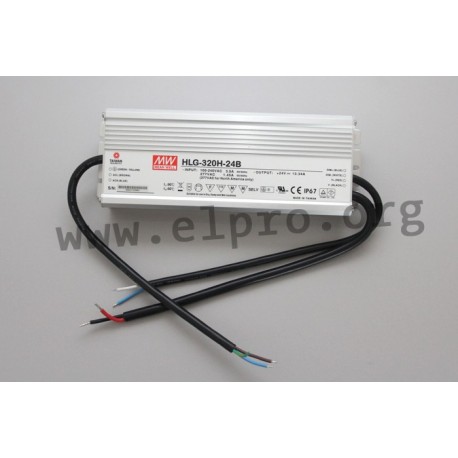

HLG-320H-15B, Mean Well LED drivers, 320W, IP67, CV and CC mixed mode, dimmable, HLG-320H series

HLG-320H-15B

244684 HLG-320H-15B HLG-320H-15B 4711287451008 Mean Well LED driver series HLG-320H. LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 320W. These devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-320H-12B, HG-320H-15B, HLG-320H-20B, HLG-320H-24B, HLG-320H-30B, HLG-320H-36B, HLG-320H-42B, HLG-320H-48B and HLG-320H-54B. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-15B
GTIN 4711287451008
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 92,5
Output voltage tolerance: [%] 2
Output power [W] 285
Ripple [mVp-p] 150
Data Sheet

Unit price

85,69 €

Stock: 0
Further delivery:
CW 11/2025
