HLG-320H-C3500AB

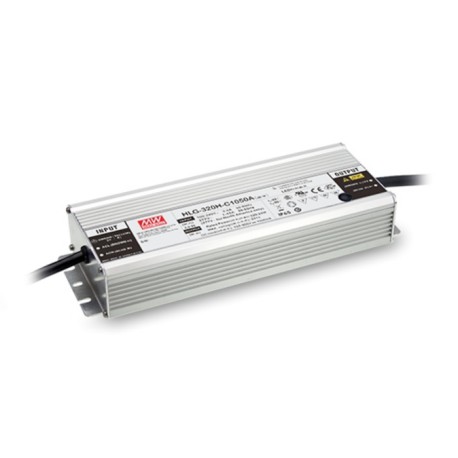

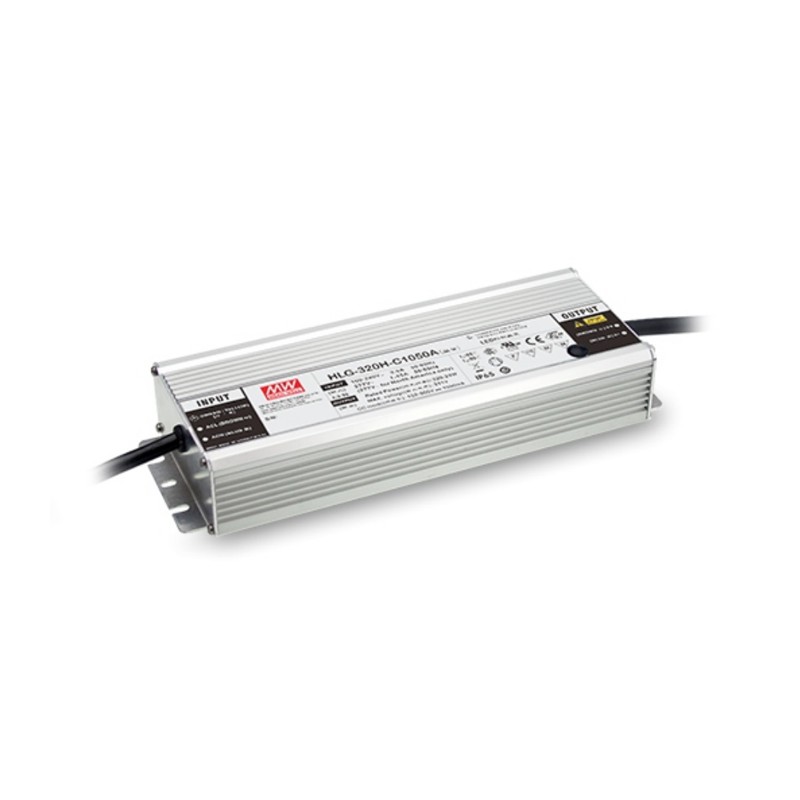

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP65) with 320W, a constant current, a potentiometer for adjusting the current limit and a 3 in 1 dimming function. These devices have a built-in active PFC function, a typical service life of >62.000h and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-320H-C700AB, HLG-320H-C1050AB, HLG-320H-C1400AB, HLG-320H-C1750AB, HLG-320H-C2100AB, HLG-320H-C2800AB and HLG-320H-C3500AB.

  • single output
  • output: 299,6 to 320,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g
HLG-320H-C3500AB, Mean Well LED drivers, 320W, IP65, constant current, dimmable, adjustable, HLG-320H-C series

HLG-320H-C3500AB

244832 HLG-320H-C3500AB HLG-320H-C3500AB 4711287452821 Mean Well LED driver series HLG-320H-C. LED drivers in a metal housing (IP65) with 320W, a constant current, a potentiometer for adjusting the current limit and a 3 in 1 dimming function. These devices have a built-in active PFC function, a typical service life of >62.000h and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-320H-C700AB, HLG-320H-C1050AB, HLG-320H-C1400AB, HLG-320H-C1750AB, HLG-320H-C2100AB, HLG-320H-C2800AB and HLG-320H-C3500AB. single output output: 299,6 to 320,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-C3500AB
GTIN 4711287452821
Output voltage [V] 46...91
Output current tolerance [%] 5
Output current [mA] 3500
Efficiency [%] 94
Output power [W] 318,5
Data Sheet

Unit price

86,59 €

Stock: 0
Further delivery:
CW 16/2025
