HLG-320H-C2800DA

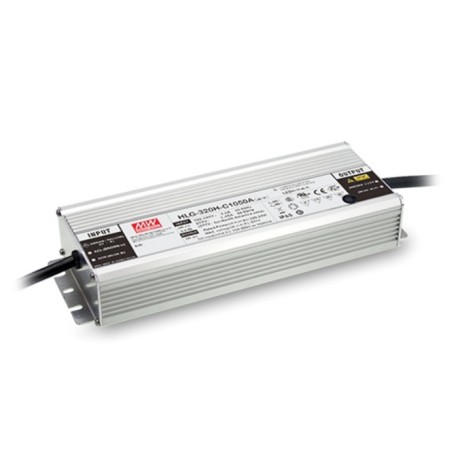

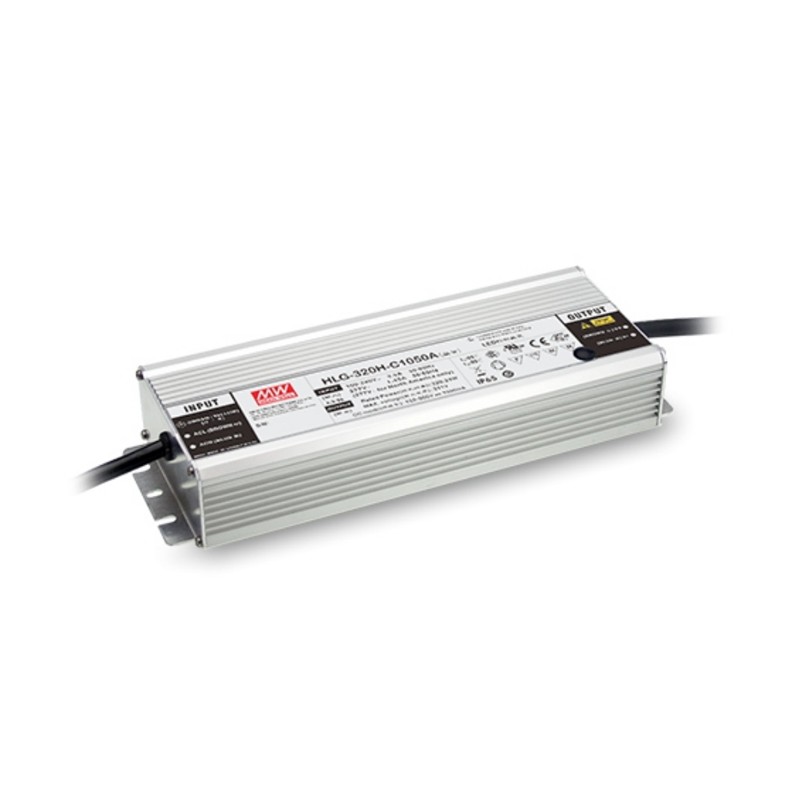

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP67) with 320W, a universal input, a DALI interface and a constant current. These devices have a built-in active PFC function, are dimmable and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications, have a service life of more than 62.000 hours and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-320H-C700DA, HLG-320H-C1050DA, HLG-320H-C1400DA, HLG-320H-C1750DA, HLG-320H-C2100DA, HLG-320H-C2800DA and HLG-320H-C3500DA.

  • single output
  • output: 299,6 to 320,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g
HLG-320H-C2800DA, Mean Well LED drivers, 320W, IP67, constant current, dimmable, DALI interface, HLG-320H-C series

HLG-320H-C2800DA

242885 HLG-320H-C2800DA HLG-320H-C2800DA 4711287452807 Mean Well LED driver series HLG-320H-C. LED drivers in a metal housing (IP67) with 320W, a universal input, a DALI interface and a constant current. These devices have a built-in active PFC function, are dimmable and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications, have a service life of more than 62.000 hours and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-320H-C700DA, HLG-320H-C1050DA, HLG-320H-C1400DA, HLG-320H-C1750DA, HLG-320H-C2100DA, HLG-320H-C2800DA and HLG-320H-C3500DA. single output output: 299,6 to 320,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-C2800DA
GTIN 4711287452807
Output voltage [V] 57...114
Output current tolerance [%] 5
Output current [mA] 2800
Efficiency [%] 94
Output power [W] 319,2
Data Sheet

Unit price

88,79 €

Volume discounts

Quantity Unit price
50 + 86,89 €

Stock: 27
Further delivery:
CW 11/2025
