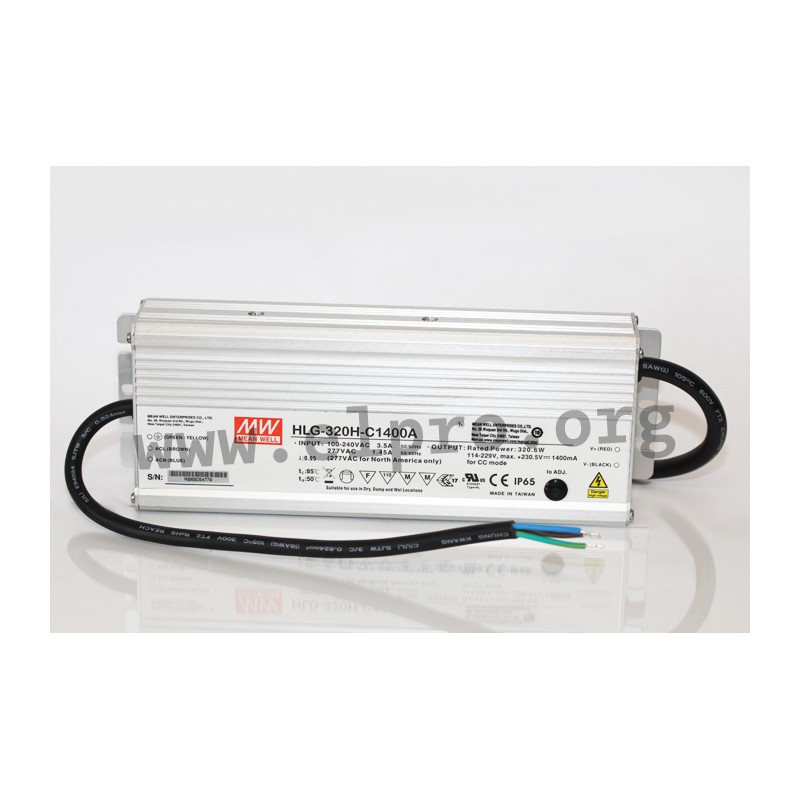

HLG-320H-C1050A

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP65) with a constant current, 320W and a built-in potentiometer for adjusting the output current. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700A, HLG-320H-C1050A, HLG-320H-C1400A, HLG-320H-C1750A, HLG-320H-C2100A, HLG-320H-C2800A and HLG-320H-C3500A.

  • single output
  • output: 299,6 to 320,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g

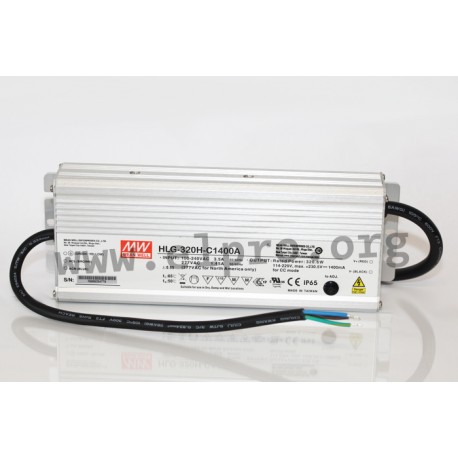

HLG-320H-C_A series

HLG-320H-C1050A

108629 HLG-320H-C1050A HLG-320H-C1050A 4711287452562 Mean Well LED driver series HLG-320H-C. LED drivers in a metal housing (IP65) with a constant current, 320W and a built-in potentiometer for adjusting the output current. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700A, HLG-320H-C1050A, HLG-320H-C1400A, HLG-320H-C1750A, HLG-320H-C2100A, HLG-320H-C2800A and HLG-320H-C3500A. single output output: 299,6 to 320,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-C1050A
GTIN 4711287452562
Output voltage [V] 152...305
Output current tolerance [%] 5
Output current [mA] 1050
Efficiency [%] 94
Output power [W] 320,25
Data Sheet

Unit price

79,59 €

Volume discounts

Quantity Unit price
50 + 76,89 €

Stock: 11
Further delivery:
CW 11/2025
