HLG-320H-C700B

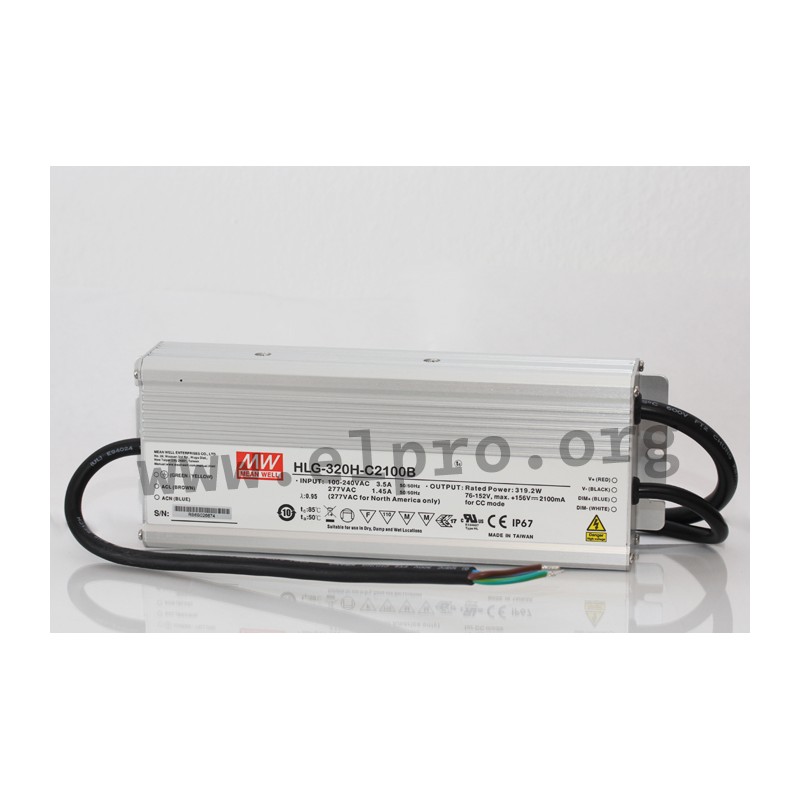

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, resistor), a long service life (>62.000h) and a constant voltage. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN55015, EN61347-2-13 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700B, HLG-320H-C1050B, HLG-320H-C1400B, HLG-320H-C1750B, HLG-320H-C2100B, HLG-320H-C2800B and HLG-320H-C3500B.

  • single output
  • output: 299,6 to 320,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g

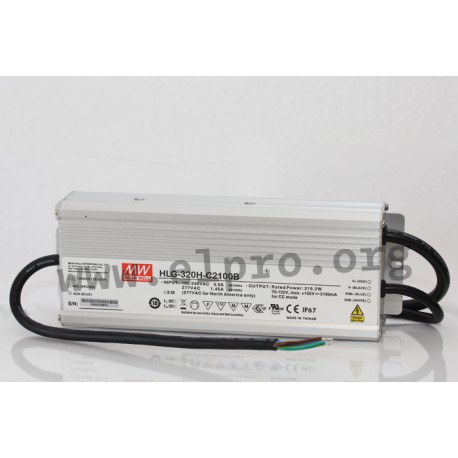

HLG-320H-C_B series

HLG-320H-C700B

108628 HLG-320H-C700B HLG-320H-C700B 4711287452883 Mean Well LED driver series HLG-320H-C. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, resistor), a long service life (>62.000h) and a constant voltage. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN55015, EN61347-2-13 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700B, HLG-320H-C1050B, HLG-320H-C1400B, HLG-320H-C1750B, HLG-320H-C2100B, HLG-320H-C2800B and HLG-320H-C3500B. single output output: 299,6 to 320,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-C700B
GTIN 4711287452883
Output voltage [V] 214...428
Output current tolerance [%] 5
Efficiency [%] 94
Output power [W] 299,6
Output current [mA] 700
Data Sheet

Unit price

82,19 €

Volume discounts

Quantity Unit price
50 + 79,49 €

Stock: 10
Further delivery:
CW 16/2025
