HLG-240H-36

Mean Well LED driver series HLG-240H

LED drivers in a metal housing (IP67) with a constant voltage, a constant current and 240W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-240H-12, HLG-240H-15, HLG-240H-20, HLG-240H-24, HLG-240H-30, HLG-240H-36, HLG-240H-42, HLG-240H-48 and HLG-240H-54.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

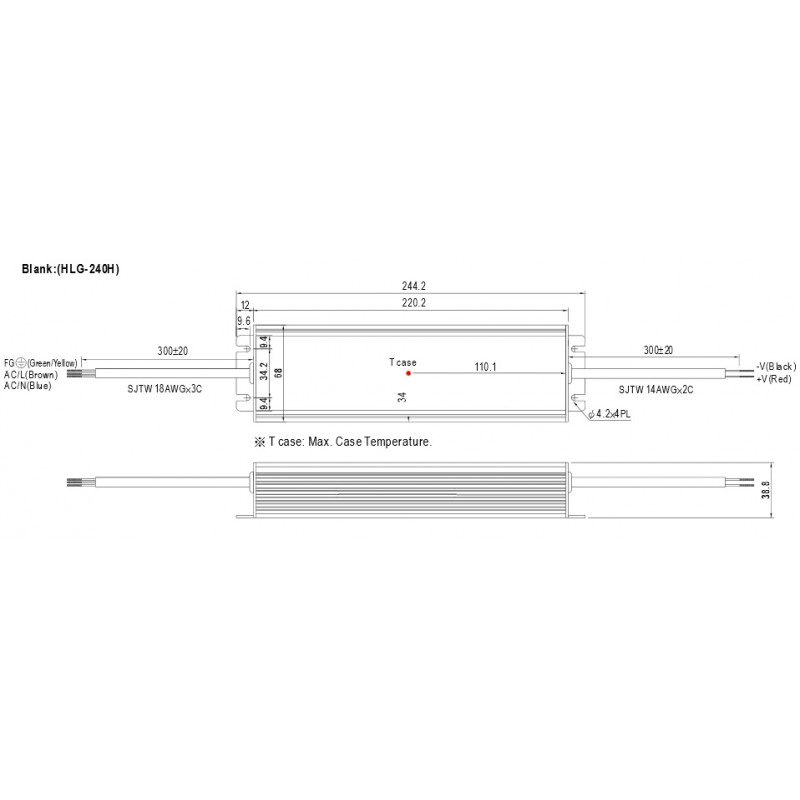

  • dimensions: 244,2x68x38,8mm
  • weight: 1300g

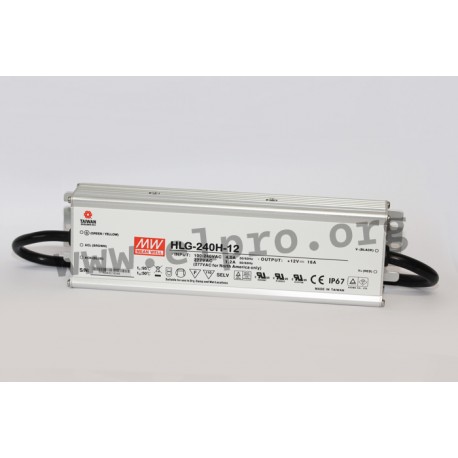

Mean Well HLG-240H series

HLG-240H-36

41268 HLG-240H-36 HLG-240H-36 4711287450612 Mean Well LED driver series HLG-240H. LED drivers in a metal housing (IP67) with a constant voltage, a constant current and 240W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-240H-12, HLG-240H-15, HLG-240H-20, HLG-240H-24, HLG-240H-30, HLG-240H-36, HLG-240H-42, HLG-240H-48 and HLG-240H-54. single output output: 192 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244,2x68x38,8mm weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-36
GTIN 4711287450612
Output voltage [V] 36
Phase 2 phase
Efficiency [%] 92,5
Output voltage tolerance: [%] 1
Output power [W] 241,2
Ripple [mVp-p] 250
Data Sheet

Unit price

58,99 €

Volume discounts

Quantity Unit price
50 + 56,99 €

Stock: 41
Further delivery:
CW 16/2025
