HLG-240H-30A

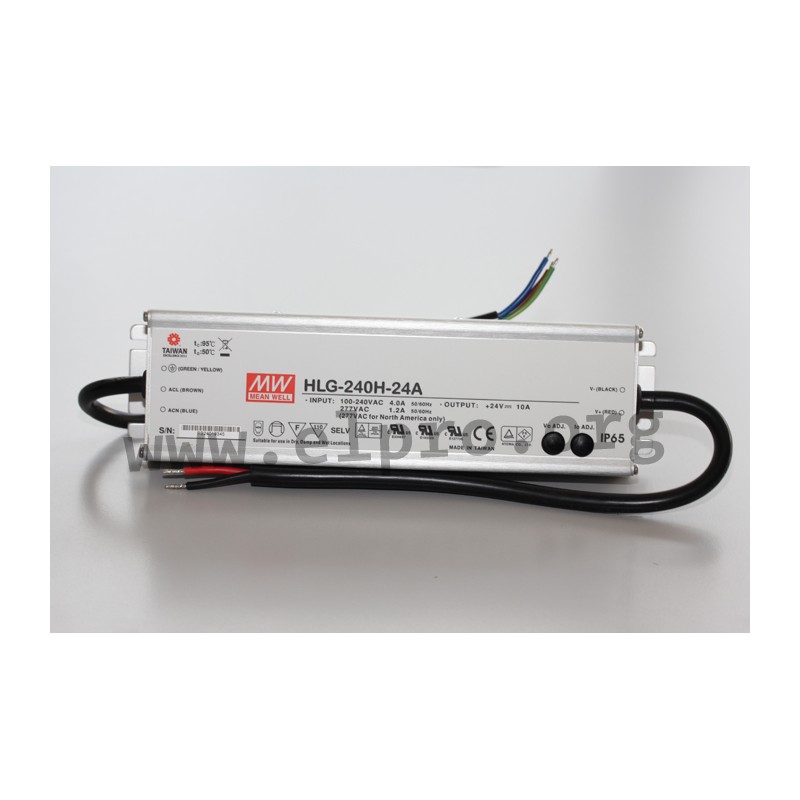

Mean Well LED driver series HLG-240H

CoC Tier 2 is an optional guideline. LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and 240W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C, EN55015, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-240H-12A, HLG-240H-15A, HLG-240H-20A, HLG-240H-24A, HLG-240H-30A, HLG-240H-36A, HLG-240H-42A, HLG-240H-48A and HLG-240H-54A.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

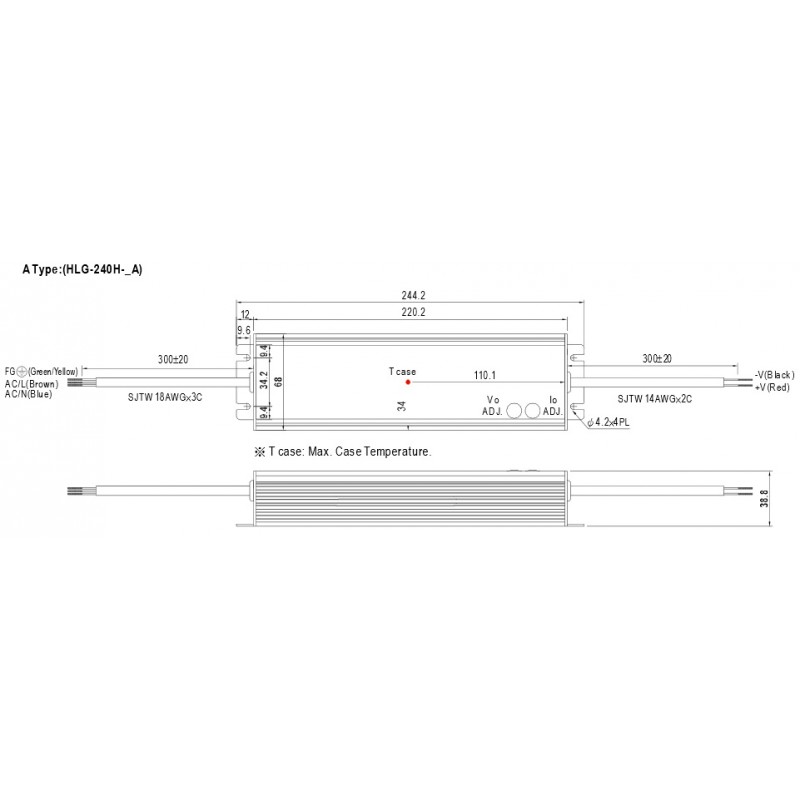

  • dimensions: 244,2x68x38,8mm
  • weight: 1300g

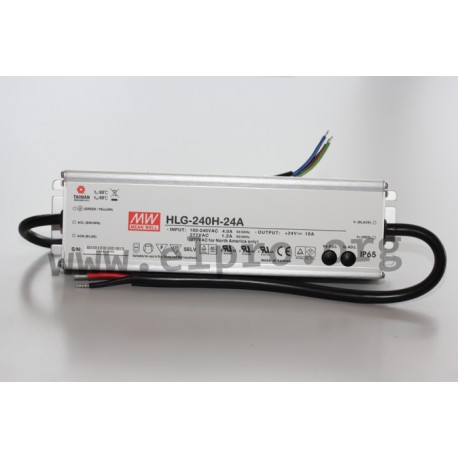

Meanwell HLG-240H series

HLG-240H-30A

36575 HLG-240H-30A HLG-240H-30A 4711287450575 Mean Well LED driver series HLG-240H. CoC Tier 2 is an optional guideline. LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and 240W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C, EN55015, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: HLG-240H-12A, HLG-240H-15A, HLG-240H-20A, HLG-240H-24A, HLG-240H-30A, HLG-240H-36A, HLG-240H-42A, HLG-240H-48A and HLG-240H-54A. single output output: 192 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244,2x68x38,8mm weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-30A
GTIN 4711287450575
Output voltage [V] 30
Phase 2 phase
Output current adjustment [A] 4...8
Efficiency [%] 92,5
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 200
Output voltage adjustment [V] 28...32
Data Sheet

Unit price

55,99 €

Volume discounts

Quantity Unit price
50 + 54,09 €

Stock: 1037
Further delivery:
CW 16/2025
