HLG-240H-C2100AB

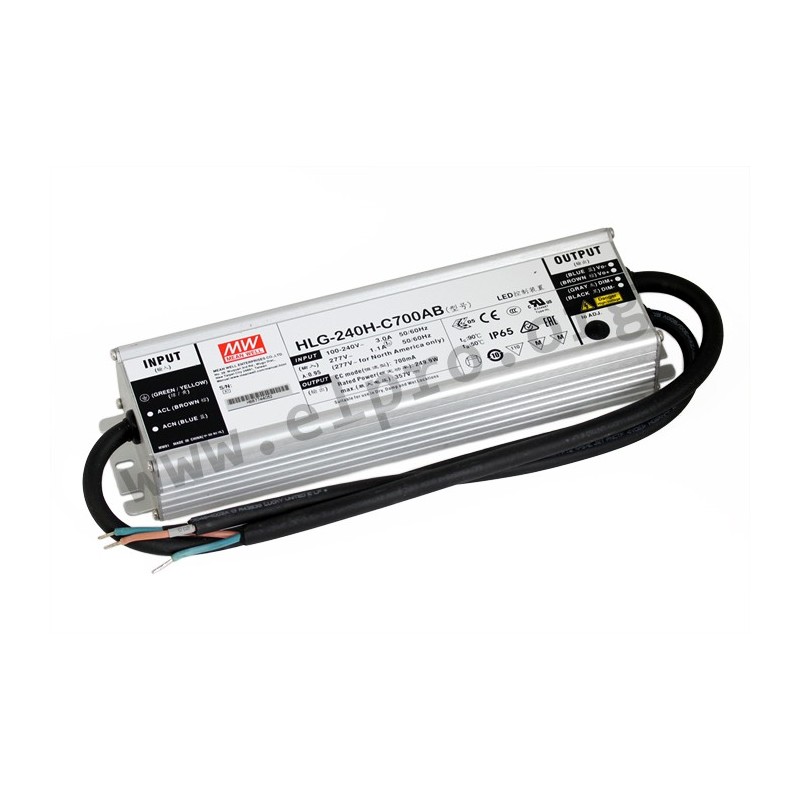

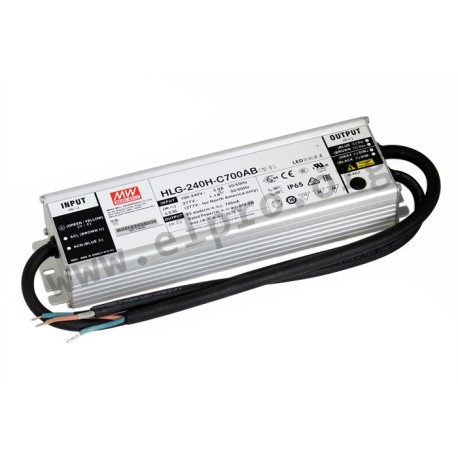

Mean Well LED driver series HLG-240H-C

LED drivers in a metal housing (IP65) with 250W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-240H-C700AB, HLG-240H-C1050AB, HLG-240H-C1400AB, HLG-240H-C1750AB and HLG-240H-C2100AB.

  • single output
  • output: 249,9 to 250,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1300g
HLG-240H-C2100AB, Mean Well LED drivers, 250W, IP65, constant current, adjustable, dimmable, HLG-240H-C series

HLG-240H-C2100AB

244795 HLG-240H-C2100AB HLG-240H-C2100AB 4711287452494 Mean Well LED driver series HLG-240H-C. LED drivers in a metal housing (IP65) with 250W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current&nbsp;limit. These&nbsp;devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting&nbsp;applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series:&nbsp;HLG-240H-C700AB, HLG-240H-C1050AB, HLG-240H-C1400AB, HLG-240H-C1750AB and HLG-240H-C2100AB. single output output: 249,9 to 250,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90&deg;C weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-C2100AB
GTIN 4711287452494
Output current tolerance [%] 5
Efficiency [%] 93,5
Output current [A] 2,1
Output power [W] 249,9
Output voltage range [V] 59...119
Data Sheet

Unit price

63,99 €

Stock: 0
Further delivery:
CW 12/2025
