HLG-240H-C700A

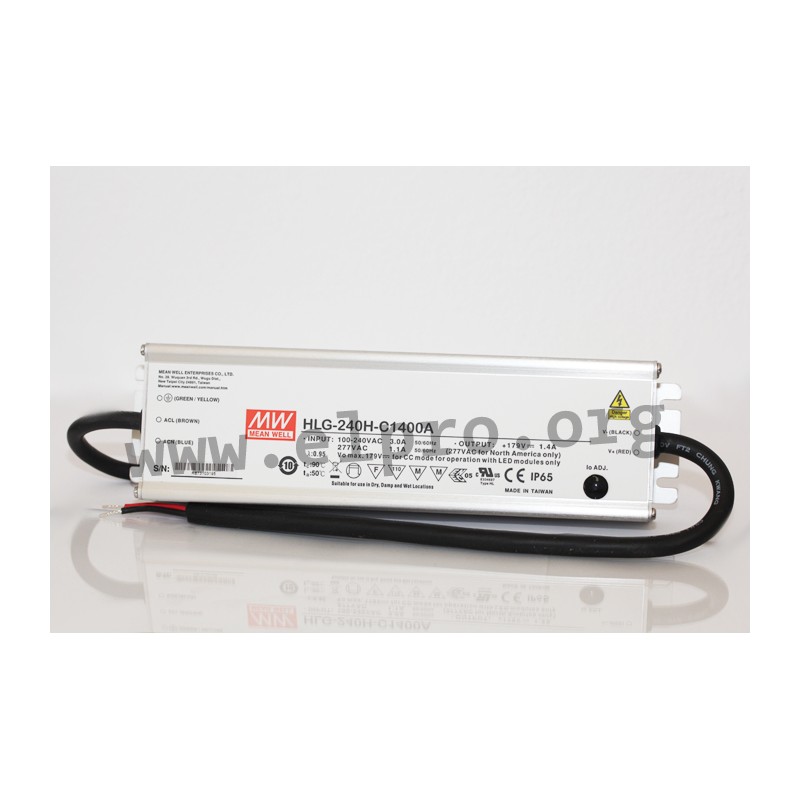

Mean Well LED driver series HLG-240H-C

LED drivers in a metal housing (IP65) with a built-in potentiometer for adjusting the current limitation, a constant current and 240W. These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-240H-C700A, HLG-240H-C1050A, HLG-240H-C1400A, HLG-240H-C1750A and HLG-240H-C2100A.

  • single output
  • output: 249,9 to 250,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244,2x68x38,8mm
  • weight: 1300g

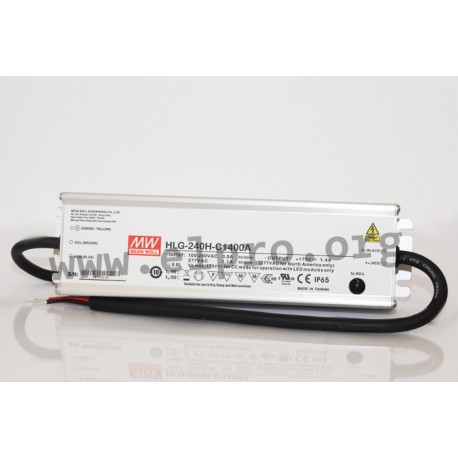

HLG-240H-C_A series

HLG-240H-C700A

108617 HLG-240H-C700A HLG-240H-C700A 4711287452524 Mean Well LED driver series HLG-240H-C. LED drivers in a metal housing (IP65) with a built-in potentiometer for adjusting the current limitation, a constant current and 240W. These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are not dimmable and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-240H-C700A, HLG-240H-C1050A, HLG-240H-C1400A, HLG-240H-C1750A and HLG-240H-C2100A. single output output: 249,9 to 250,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244,2x68x38,8mm weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-C700A
GTIN 4711287452524
Output voltage [V] 178...357
Output current tolerance [%] 5
Efficiency [%] 93,5
Output power [W] 249,9
Output current [mA] 700
Data Sheet

Unit price

58,99 €

Volume discounts

Quantity Unit price
50 + 56,99 €

Stock: 47
Further delivery:
CW 16/2025
