HLG-185H-24B

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 185W and a constant current. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12B, HLG-185H-15B, HLG-185H-20B, HLG-185H-24B, HLG-185H-30B, HLG-185H-36B, HLG-185H-48B and HLG-185H-54B.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

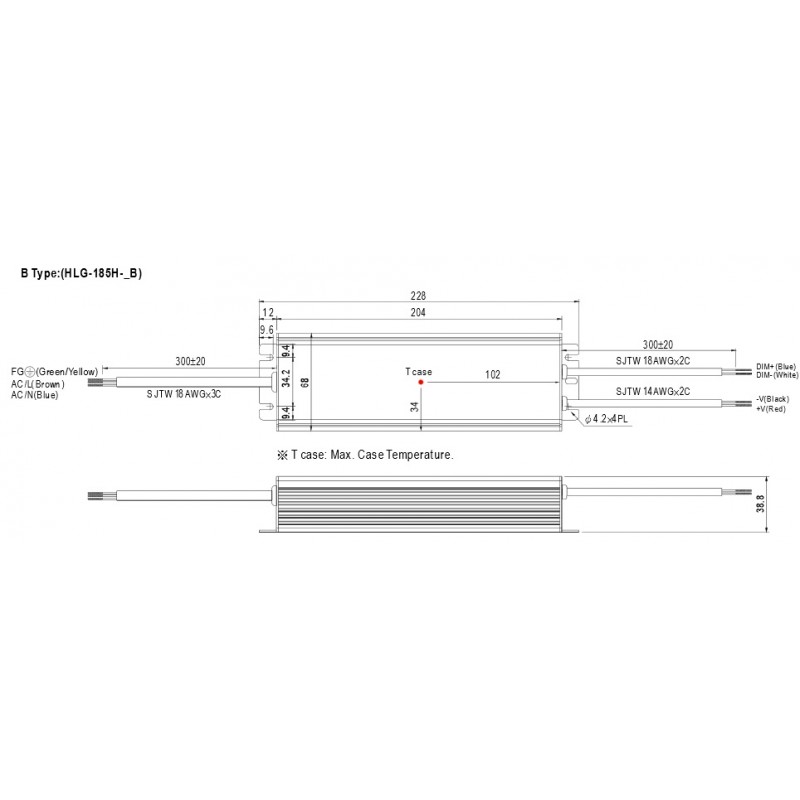

  • dimensions: 228x68x38,8mm
  • weight: 1150g

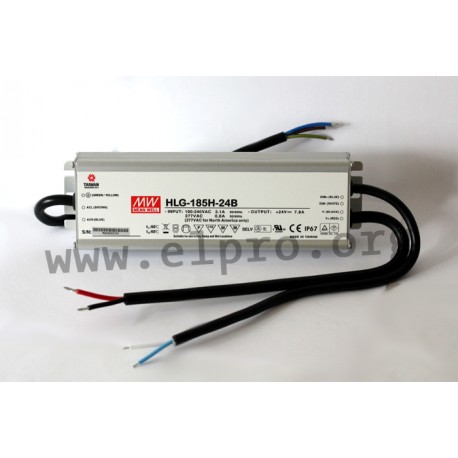

Meanwell HLG-185H_B series

HLG-185H-24B

36554 HLG-185H-24B HLG-185H-24B 4711287450155 Mean Well LED driver series HLG-185H. LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 185W and a constant current. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12B, HLG-185H-15B, HLG-185H-20B, HLG-185H-24B, HLG-185H-30B, HLG-185H-36B, HLG-185H-48B and HLG-185H-54B. single output output: 156 to 187,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-185H-24B
GTIN 4711287450155
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 93,5
Output voltage tolerance: [%] 1
Output power [W] 187,2
Ripple [mVp-p] 150
Data Sheet

Unit price

45,09 €

Volume discounts

Quantity Unit price
50 + 43,89 €

Stock: 276
Further delivery:
CW 11/2025
