HLG-185H-24A

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP65) with a constant current, 185W and a constant voltage. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C, are suitable for LED lighting applications and are not dimmable. They have a built-in potentiometer for adjusting the current limitation / output voltage as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12A, HLG-185H-15A, HLG-185H-20A, HLG-185H-24A, HLG-185H-30A, HLG-185H-36A, HLG-185H-42A, HLG-185H-48A and HLG-185H-54A.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

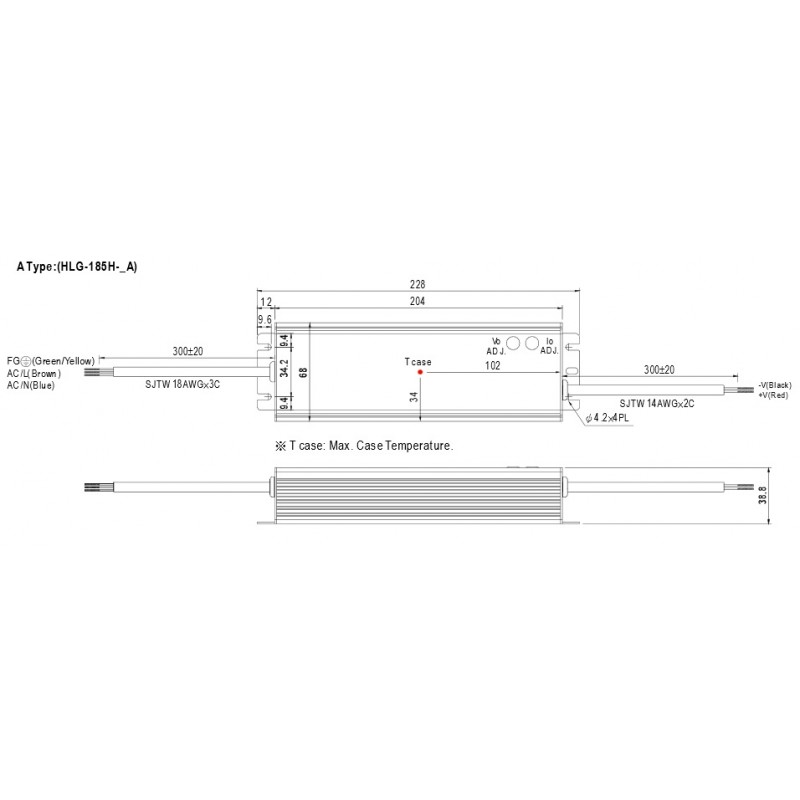

  • dimensions: 228x68x38,8mm
  • weight: 1150g
Mean Well HLG-185H-_A series

HLG-185H-24A

36551 HLG-185H-24A HLG-185H-24A 4711287450131 Mean Well LED driver series HLG-185H. LED drivers in a metal housing (IP65) with a constant current, 185W and a constant voltage. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C, are suitable for LED lighting applications and are not dimmable. They have a built-in potentiometer for adjusting the current limitation / output voltage as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12A, HLG-185H-15A, HLG-185H-20A, HLG-185H-24A, HLG-185H-30A, HLG-185H-36A, HLG-185H-42A, HLG-185H-48A and HLG-185H-54A. single output output: 156 to 187,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-185H-24A
GTIN 4711287450131
Output voltage [V] 24
Phase 2 phase
Output current adjustment [A] 3,9...7,8
Efficiency [%] 93,5
Output voltage tolerance: [%] 1
Output power [W] 187,2
Ripple [mVp-p] 150
Output voltage adjustment [V] 22...27
Data Sheet

Unit price

42,19 €

Volume discounts

Quantity Unit price
50 + 41,09 €

Stock: 1010
Next incoming goods:
CW 03/2025
504 units

Further delivery:
CW 11/2025
