HLG-185H-54AB

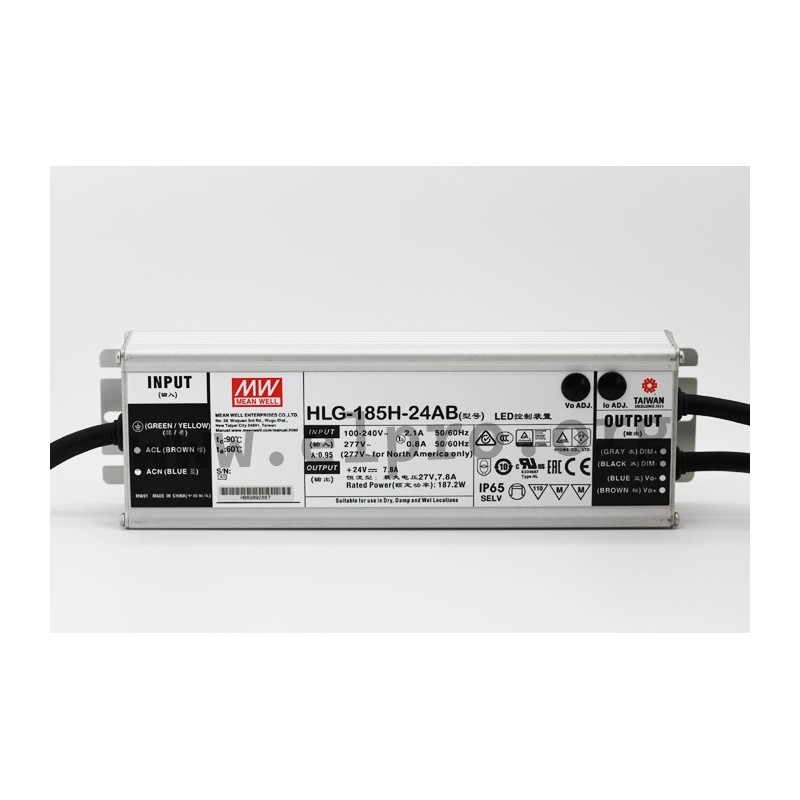

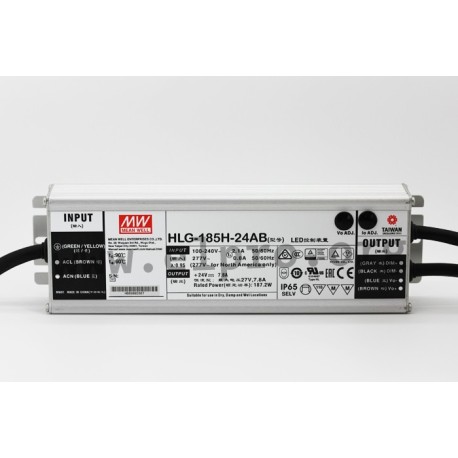

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP65) with a constant current, 185W, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a constant voltage. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-185H-12AB, HLG-185H-15AB, HLG-185H-20AB, HLG-185H-24AB, HLG-185H-30AB, HLG-185H-36AB, HLG-185H-42AB, HLG-185H-48AB and HLG-185H-54AB.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g
HLG-185H-54AB, Mean Well LED drivers, 185W, IP65, CV and CC mixed mode, dimmable, adjustable, HLG-185H series

HLG-185H-54AB

244630 HLG-185H-54AB HLG-185H-54AB 4711287450346 Mean Well LED driver series HLG-185H. LED drivers in a metal housing (IP65) with a constant current, 185W, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and a constant voltage. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-185H-12AB, HLG-185H-15AB, HLG-185H-20AB, HLG-185H-24AB, HLG-185H-30AB, HLG-185H-36AB, HLG-185H-42AB, HLG-185H-48AB and HLG-185H-54AB. single output output: 156 to 187,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-185H-54AB
GTIN 4711287450346
Output voltage [V] 54
Efficiency [%] 94
Output current [A] 3,45
Output voltage tolerance: [%] 1
Output power [W] 186,3
Ripple [mVp-p] 200
Data Sheet

Unit price

51,59 €

Stock: 0
Further delivery:
CW 11/2025
