HLG-185H-54

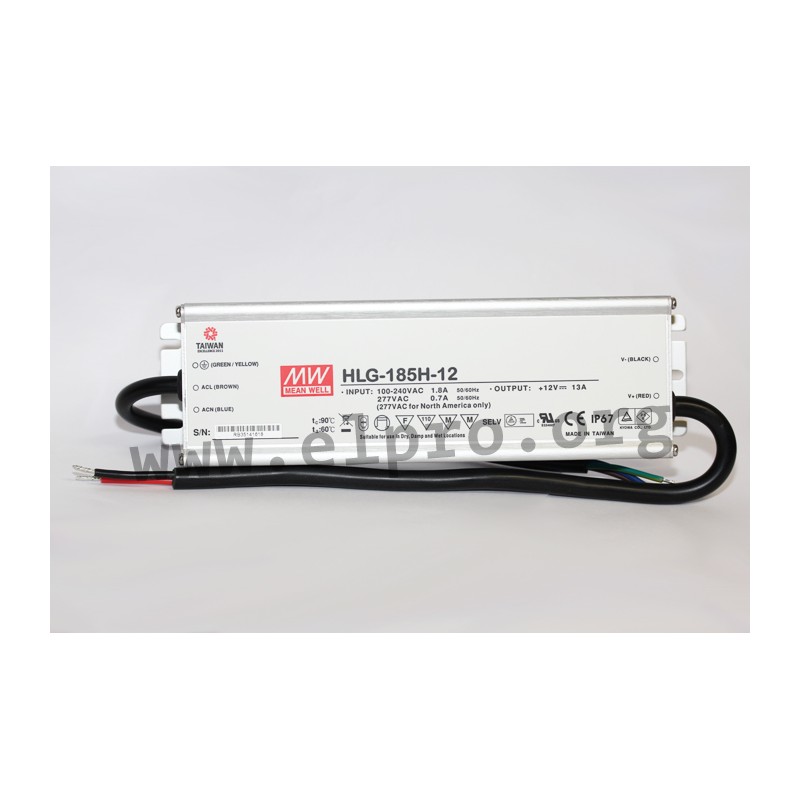

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP67) with a constant current, 185W and a constant voltage. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-185H-12, HLG-185H-20, HLG-185H-24, HLG-185H-30, HLG-185H-36, HLG-185H-42, HLG-185H-48 and HLG-185H-54.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • weight: 1,15kg

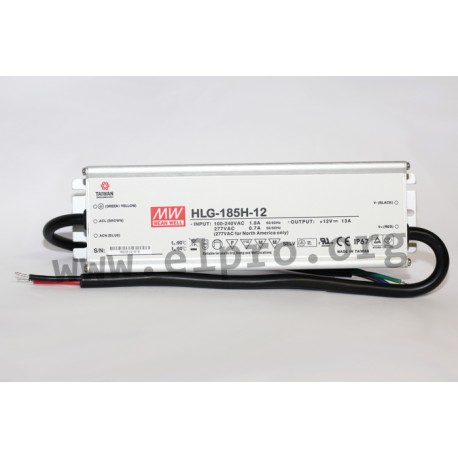

HLG-185H-54, Mean Well LED drivers, 185W, IP67, HLG-185H series

HLG-185H-54

135844 HLG-185H-54 HLG-185H-54 4711287450322 Mean Well LED driver series HLG-185H. LED drivers in a metal housing (IP67) with a constant current, 185W and a constant voltage. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-185H-12, HLG-185H-20, HLG-185H-24, HLG-185H-30, HLG-185H-36, HLG-185H-42, HLG-185H-48 and HLG-185H-54. single output output: 156 to 187,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C weight: 1,15kg

Specifications

manufacturer
Manufacturer's name HLG-185H-54
GTIN 4711287450322
Output voltage [V] 54
Efficiency [%] 94
Output voltage tolerance: [%] 1
Output power [W] 186,3
Ripple [mVp-p] 200
Data Sheet

Unit price

49,69 €

Volume discounts

Quantity Unit price
50 + 48,59 €

Stock: 6
Further delivery:
CW 11/2025
