HLG-185H-C1050A

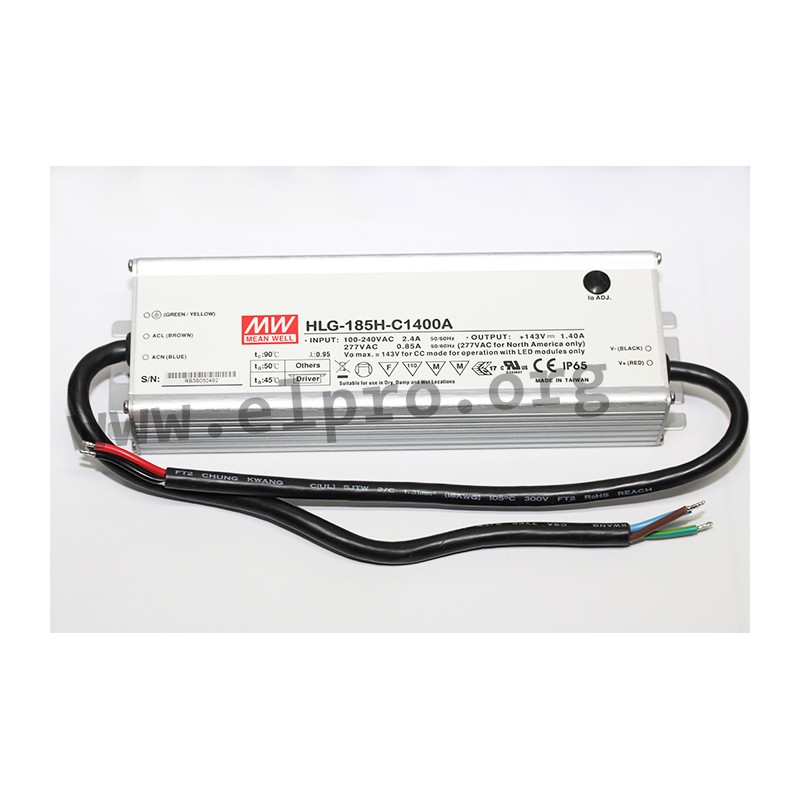

Mean Well LED driver series HLG-185H-C

LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the current limitation and a high output voltage. These devices are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. They comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-C500A, HLG-185H-C700A, HLG-185H-C1050A and HLG-185H-C1400A.

  • single output
  • output: 199,5 to 200,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g

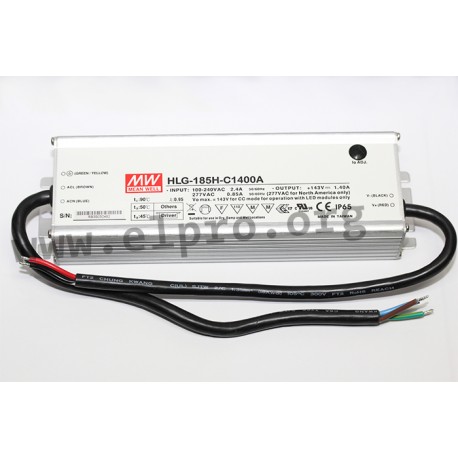

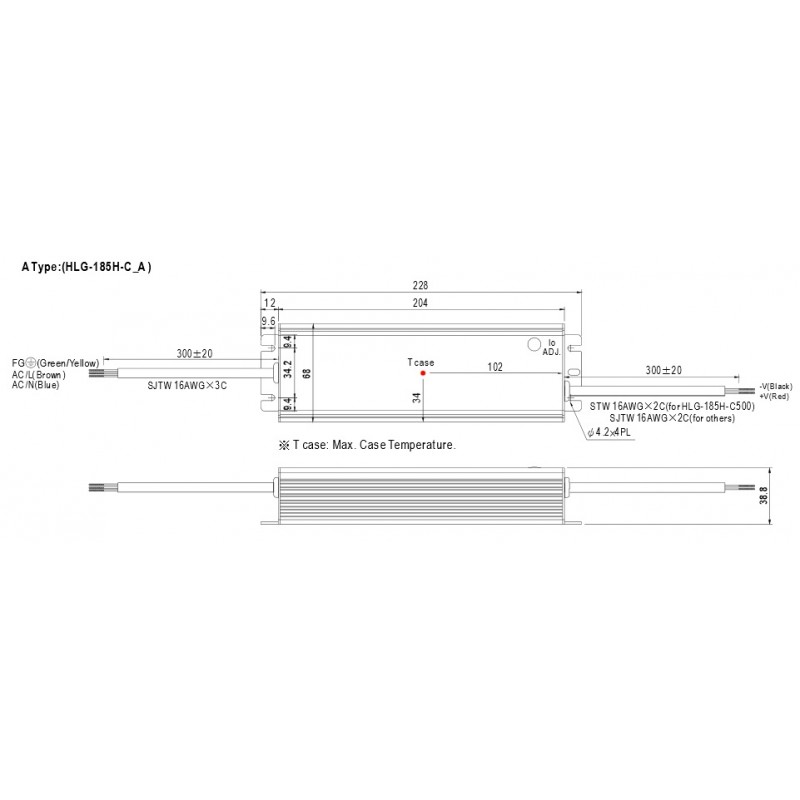

dimensions

HLG-185H-C1050A

41264 HLG-185H-C1050A HLG-185H-C1050A 4711287452241 Mean Well LED driver series HLG-185H-C. LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the current limitation and a high output voltage. These devices are suitable for LED lighting applications, are not dimmable and have a built-in active PFC function. They comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-C500A, HLG-185H-C700A, HLG-185H-C1050A and HLG-185H-C1400A. single output output: 199,5 to 200,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +70°C dimensions: 228x68x38,8mm weight: 1150g

Specifications

manufacturer
Manufacturer's name HLG-185H-C1050A
GTIN 4711287452241
Output voltage [V] 95...190
Phase 2 phase
Output current adjustment [A] 0,525...1,05
Efficiency [%] 94
Output power [W] 199,5
Ripple [mVp-p] 1000
Data Sheet

Unit price

47,49 €

Volume discounts

Quantity Unit price
50 + 45,89 €

Stock: 0
Next incoming goods:
CW 06/2025
50 units

Further delivery:
CW 16/2025
